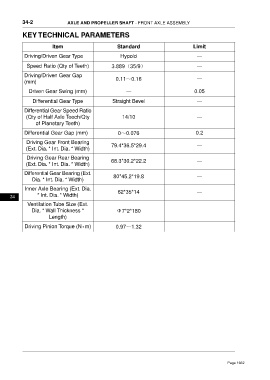

34-2 AXLE AND PROPELLER SHAFT - FRONT AXLE ASSEMBLY

KEY TECHNICAL PARAMETERS

Item Standard Limit
Driving/Driven Gear Type Hypoid —

Speed Ratio (Qty of Teeth) 3.889（35/9） —

Driving/Driven Gear Gap
0.11～0.16 —
(mm)
Driven Gear Swing (mm) — 0.05

Differential Gear Type Straight Bevel —

Differential Gear Speed Ratio
(Qty of Half Axle Teech/Qty 14/10 —
of Planetary Teeth)

Differential Gear Gap (mm) 0～0.076 0.2

Driving Gear Front Bearing
(Ext. Dia. * Int. Dia. * Width) 79.4*36.5*29.4 —

Driving Gear Rear Bearing
(Ext. Dia. * Int. Dia. * Width) 68.3*30.2*22.2 —
Differential Gear Bearing (Ext. 80*45.2*19.8
Dia. * Int. Dia. * Width) —

Inner Axle Bearing (Ext. Dia.
62*35*14 —
* Int. Dia. * Width)
34
Ventilation Tube Size (Ext.
Dia. * Wall Thickness * Φ7*2*180 —
Length)
Driving Pinion Torque (N•m) 0.97～1.32
