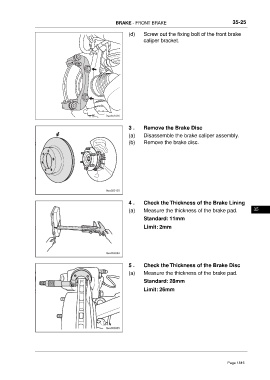

BRAKE - FRONT BRAKE 35-25
(d) Screw out the fixing bolt of the front brake
caliper bracket.
ftwx351016
3 . Remove the Brake Disc
(a) Disassemble the brake caliper assembly.
(b) Remove the brake disc.
4 . Check the Thickness of the Brake Lining
(a) Measure the thickness of the brake pad. 35
Standard: 11mm
Limit: 2mm
5 . Check the Thickness of the Brake Disc
(a) Measure the thickness of the brake pad.
Standard: 28mm
Limit: 26mm
