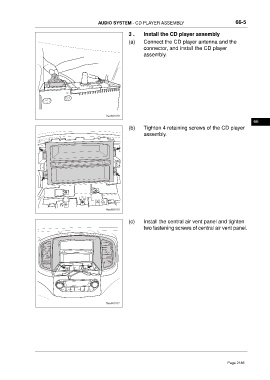

AUDIO SYSTEM - CD PLAYER ASSEMBLY                             66-5

                                                           3 .    Install the CD player assembly
                                                           (a)    Connect the CD player antenna and the
                                                                  connector, and install the CD player
                                                                  assembly.















                                                 ftwx661019
                                                                                                                     66
                                                           (b)    Tighten 4 retaining screws of the CD player
                                                                  assembly.




















                                                 ftwx661018

                                                           (c)    Install the central air vent panel and tighten
                                                                  two fastening screws of central air vent panel.



















                                                 ftwx661017
