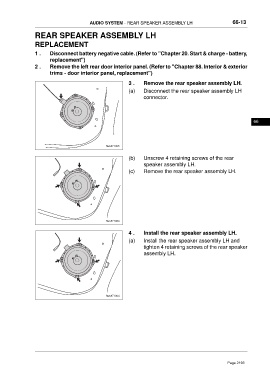

AUDIO SYSTEM - REAR SPEAKER ASSEMBLY LH 66-13

REAR SPEAKER ASSEMBLY LH

REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the left rear door interior panel. (Refer to "Chapter 88. Interior & exterior
trims - door interior panel, replacement")

3 . Remove the rear speaker assembly LH.
(a) Disconnect the rear speaker assembly LH
connector.

66

ftwx871005

(b) Unscrew 4 retaining screws of the rear
speaker assembly LH.
(c) Remove the rear speaker assembly LH.

ftwx871004

4 . Install the rear speaker assembly LH.
(a) Install the rear speaker assembly LH and
tighten 4 retaining screws of the rear speaker
assembly LH.

ftwx871004
