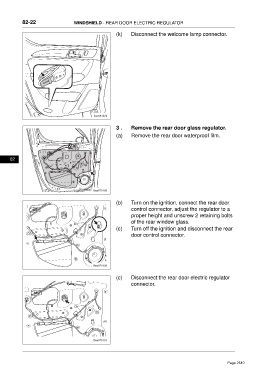

82-22 WINDSHIELD - REAR DOOR ELECTRIC REGULATOR
(k) Disconnect the welcome lamp connector.
ftwx881020
3 . Remove the rear door glass regulator.
(a) Remove the rear door waterproof film.
82
ftwx871006
(b) Turn on the ignition, connect the rear door
control connector, adjust the regulator to a
proper height and unscrew 2 retaining bolts
of the rear window glass.
(c) Turn off the ignition and disconnect the rear
door control connector.
ftwx871009
(c) Disconnect the rear door electric regulator
connector.
ftwx871003
