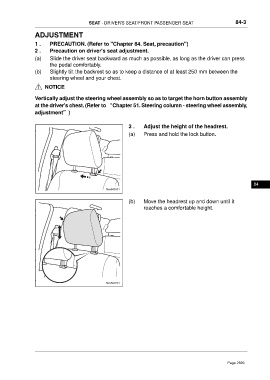

SEAT - DRIVER'S SEAT/FRONT PASSENGER SEAT 84-3

ADJUSTMENT

1 . PRECAUTION. (Refer to "Chapter 84. Seat, precaution")
2 . Precaution on driver's seat adjustment.
(a) Slide the driver seat backward as much as possible, as long as the driver can press
the pedal comfortably.
(b) Slightly tilt the backrest so as to keep a distance of at least 250 mm between the
steering wheel and your chest.
NOTICE

Vertically adjust the steering wheel assembly so as to target the horn button assembly
at the driver's chest. (Refer to “Chapter 51. Steering column - steering wheel assembly,
adjustment”)

3 . Adjust the height of the headrest.
(a) Press and hold the lock button.

84

(b) Move the headrest up and down until it
reaches a comfortable height.
