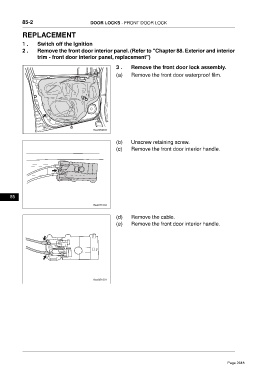

Page 2618 - Foton Workshop Manual - Tunland (AT)

85-2 DOOR LOCKS - FRONT DOOR LOCK

REPLACEMENT

1 . Switch off the Ignition
2 . Remove the front door interior panel. (Refer to "Chapter 88. Exterior and interior
trim - front door interior panel, replacement")
3 . Remove the front door lock assembly.

(a) Remove the front door waterproof film.

ftwx850003

(b) Unscrew retaining screw.
(c) Remove the front door interior handle.

85
ftwx871002

(d) Remove the cable.
(e) Remove the front door interior handle.

ftwx851001

Page 2618
