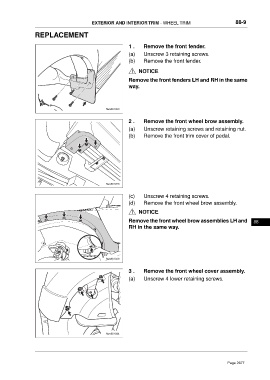

EXTERIOR AND INTERIOR TRIM - WHEEL TRIM 88-9

REPLACEMENT

1 . Remove the front fender.

(a) Unscrew 3 retaining screws.
(b) Remove the front fender.

NOTICE
Remove the front fenders LH and RH in the same
way.

ftwx881060

2 . Remove the front wheel brow assembly.
(a) Unscrew retaining screws and retaining nut.
(b) Remove the front trim cover of pedal.

ftwx881028

(c) Unscrew 4 retaining screws.
(d) Remove the front wheel brow assembly.
NOTICE

Remove the front wheel brow assemblies LH and 88
RH in the same way.

ftwx881029

3 . Remove the front wheel cover assembly.
(a) Unscrew 4 lower retaining screws.

ftwx881044
