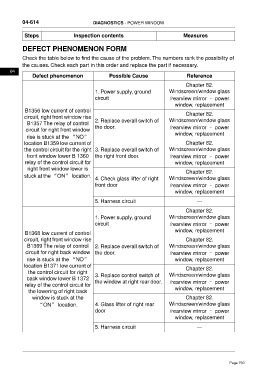

Page 760 - Foton Workshop Manual - Tunland (AT)

04-614 DIAGNOSTICS - POWER WINDOW

Steps Inspection contents Measures

DEFECT PHENOMENON FORM

Check the table below to find the cause of the problem. The numbers rank the possibility of
the causes. Check each part in this order and replace the part if necessary.
04
Defect phenomenon Possible Cause Reference
Chapter 82.
1. Power supply, ground Windscreen/window glass
circuit /rearview mirror – power
window, replacement
B1356 low current of control
Chapter 82.
circuit, right front window rise
2. Replace overall switch of Windscreen/window glass
B1357 The relay of control
the door. /rearview mirror – power
circuit for right front window
window, replacement
rise is stuck at the “NO”
location B1359 low current of Chapter 82.
the control circuit for the right 3. Replace overall switch of Windscreen/window glass
front window lower B 1360 the right front door. /rearview mirror – power
relay of the control circuit for window, replacement
right front window lower is
Chapter 82.
stuck at the “ON” location.
4. Check glass lifter of right Windscreen/window glass
front door /rearview mirror – power
window, replacement
5. Harness circuit —

Chapter 82.
1. Power supply, ground Windscreen/window glass
circuit /rearview mirror – power
window, replacement
B1368 low current of control
circuit, right front window rise Chapter 82.
B1369 The relay of control 2. Replace overall switch of Windscreen/window glass
circuit for right back window the door. /rearview mirror – power
rise is stuck at the “NO” window, replacement
location B1371 low current of Chapter 82.
the control circuit for right
3. Replace control switch of Windscreen/window glass
back window lower B 1372
the window at right rear door. /rearview mirror – power
relay of the control circuit for
window, replacement
the lowering of right back
window is stuck at the Chapter 82.
“ON” location. 4. Glass lifter of right rear Windscreen/window glass
door /rearview mirror – power
window, replacement

5. Harness circuit —
