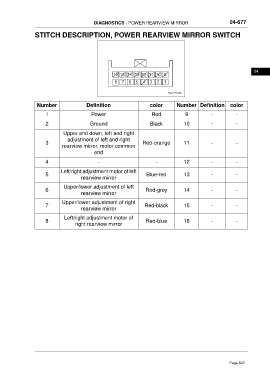

DIAGNOSTICS - POWER REARVIEW MIRROR 04-677

STITCH DESCRIPTION, POWER REARVIEW MIRROR SWITCH

04
16 15 14 13 12 11 10 9
8 7 6 5 4 3 2 1

ftwx711045

Number Definition color Number Definition color

1 Power Red 9 - -
2 Ground Black 10 – –

Upper and down, left and right
adjustment of left and right
3 Red-orange 11 – –
rearview mirror, motor common
end

4 – – 12 – –

Left/right adjustment motor of left
5 Blue-red 13 – –
rearview mirror
Upper/lower adjustment of left
6 Red-grey 14 – –
rearview mirror
Upper/lower adjustment of right
7 Red-black 15 – –
rearview mirror
Left/right adjustment motor of
8 Red-blue 16 – –
right rearview mirror
