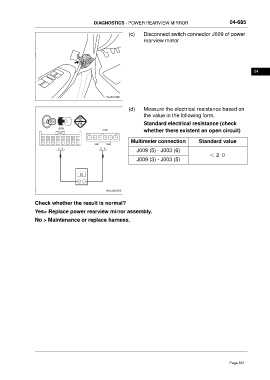

DIAGNOSTICS - POWER REARVIEW MIRROR 04-685
(c) Disconnect switch connector J009 of power
rearview mirror
04
(d) Measure the electrical resistance based on
the value in the following form.
Standard electrical resistance (check
whether there existent an open circuit)
Multimeter connection Standard value
J009 (5) - J003 (6)
＜ 2 Ω
J009 (3) - J003 (5)
Check whether the result is normal?
Yes> Replace power rearview mirror assembly.
No > Maintenance or replace harness.
