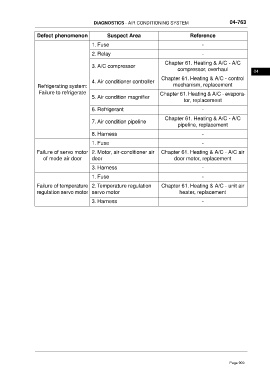

DIAGNOSTICS - AIR CONDITIONING SYSTEM 04-763
Defect phenomenon Suspect Area Reference
1. Fuse -
2. Relay -
Chapter 61. Heating & A/C - A/C
3. A/C compressor
compressor, overhaul 04
Chapter 61. Heating & A/C - control
4. Air conditioner controller
Refrigerating system: mechanism, replacement
Failure to refrigerate Chapter 61. Heating & A/C - evapora-
5. Air condition magnifier
tor, replacement
6. Refrigerant -
Chapter 61. Heating & A/C - A/C
7. Air condition pipeline
pipeline, replacement
8. Harness -
1. Fuse -
Failure of servo motor 2. Motor, air-conditioner air Chapter 61. Heating & A/C - A/C air
of mode air door door door motor, replacement
3. Harness -
1. Fuse -
Failure of temperature 2. Temperature regulation Chapter 61. Heating & A/C - unit air
regulation servo motor servo motor heater, replacement
3. Harness -
