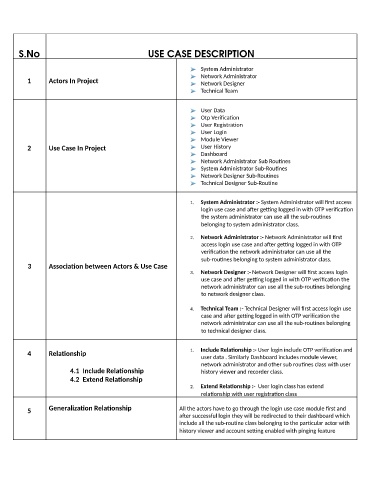

S.No USE CASE DESCRIPTION
System Administrator
Network Administrator
1 Actors In Project Network Designer
Technical Team
User Data
Otp Verifica on
User Registra on
User Login
Module Viewer
2 Use Case In Project User History
Dashboard
Network Administrator Sub Rou nes
System Administrator Sub-Rou nes
Network Designer Sub-Rou nes
Technical Designer Sub-Rou ne
1. System Administrator :- System Administrator will first access
login use case and a er ge ng logged in with OTP verifica on
the system administrator can use all the sub-rou nes
belonging to system administrator class.
2. Network Administrator :- Network Administrator will first
access login use case and a er ge ng logged in with OTP
verifica on the network administrator can use all the
sub-rou nes belonging to system administrator class.
3 Associa on between Actors & Use Case
3. Network Designer :- Network Designer will first access login
use case and a er ge ng logged in with OTP verifica on the
network administrator can use all the sub-rou nes belonging
to network designer class.
4. Technical Team :- Technical Designer will first access login use
case and a er ge ng logged in with OTP verifica on the
network administrator can use all the sub-rou nes belonging
to technical designer class.
4 Rela onship 1. Include Rela onship :- User login include OTP verifica on and
user data . Similarly Dashboard includes module viewer,
network administrator and other sub rou nes class with user
4.1 Include Rela onship history viewer and recorder class.
4.2 Extend Rela onship
2. Extend Rela onship :- User login class has extend
rela onship with user registra on class
5 Generaliza on Rela onship All the actors have to go through the login use case module first and
a er successful login they will be redirected to their dashboard which
include all the sub-rou ne class belonging to the par cular actor with
history viewer and account se ng enabled with pinging feature
