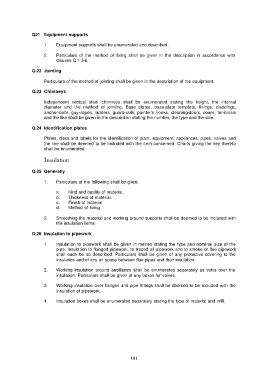

Q21 Equipment supports

1. Equipment supports shall be enumerated and described.

2. Particulars of the method of fixing shall be given in the description in accordance with
clauses Q.1.5-6.

Q.22 Jointing

Particulars of the method of jointing shall be given in the description of the equipment.

Q.23 Chimneys

Independent vertical steel chimneys shall be enumerated stating the height, the internal
diameter and the method of jointing. Base plates, base-plate templets, linings, claddings,
anchor-bolts, guy-ropes, ladders, guard-rails, painter's hooks, cleaning-doors, cowls, terminals
and the like shall be given in the description stating the number, the type and the size.

Q.24 Identification plates

Plates, discs and labels for the identification of plant, equipment, appliances, pipes, valves and
the like shall be deemed to be included with the item concerned. Charts giving the key thereto
shall be enumerated.

Insulation

Q.25 Generally

1. Particulars of the following shall be given:

a Kind and quality of material.
b. Thickness of material.
c. Finish of material
d. Method of fixing

2. Smoothing the material and working around supports shall be deemed to be included with
the insulation items.

Q.26 Insulation to pipework

1 Insulation to pipework shall be given in metres stating the type and nominal size of the
pipe. Insulation to flanged pipework, to traced oil pipework and to smoke or flue pipework
shall each be so described. Particulars shall be given of any protective covering to the
insulation and of any air space between flue pipes and their insulation.

2. Working insulation around ancillaries shall be enumerated separately as extra over the
insulation. Particulars shall be given of any boxes for valves.

3. Working insulation over flanges and pipe fittings shall be deemed to be included with the
insuiation of pipework.

4. Insulation boxes shall be enumerated separately stating the type of material and infill.
