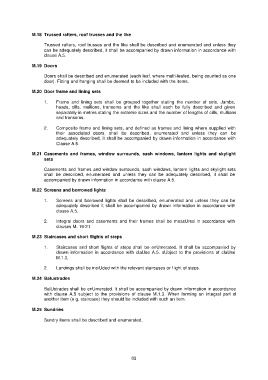

M.18 Trussed rafters, roof trusses and the like

Trussed rafters, roof trusses and the like shall be described and enumerated and unless they
can be adequately described, it shall be accompanied by drawn information in accordance with
clause A.5.

M.19 Doors

Doors shall be described and enumerated (each leaf, where multi-leafed, being counted as one
door). Fitting and hanging shall be deemed to be included with the items.

M.20 Door frame and lining sets

1. Frame and lining sets shall be grouped together stating the number of sets. Jambs,
heads, cills, mullions, transoms and the like shall each be fully described and given
separately in metres stating the extreme sizes and the number of lengths of cills, mullions
and transoms.

2. Composite frame and lining sets, and defined as frames and lining where supplied with
their associated doors, shall be described, enumerated and unless they can be
adequately described, it shall be accompanied by drawn information in accordance with
Clause A.5.

M.21 Casements and frames, window surrounds, sash windows, lantern lights and skylight
sets

Casements and frames and window surrounds, sash windows, lantern lights and skylight sets
shall be described, enumerated and unless they can be adequately described, it shall be
accompanied by drawn information in accordance with clause A.5.

M.22 Screens and borrowed lights

1. Screens and borrowed lights shall be described, enumerated and unless they can be
adequately described it shall be accompanied by drawn information in accordance with
clause A.5.

2. Integral doors and casements and their frames shall be measUred in accordance with
clauses M. 19-21

M.23 Staircases and short flights of steps

1. Staircases and short flights of steps shall be enUmerated. It shall be accompanied by
drawn information in accordance with claUse A.5. sUbject to the provisions of claUse
M.1.3.

2. Landings shall be inciUded with the relevant staircases or f ight of steps.

M.24 Balustrades

BalUstrades shall be enUmerated. It shall be accompanied by drawn information in accordance
with clause A.5 subject to the provisions of clause M.1.3. When forming an integral part of
another item (e g. staircase) they should be included with such an item.

M.25 Sundries

Sundry items shall be described and enumerated.

83
