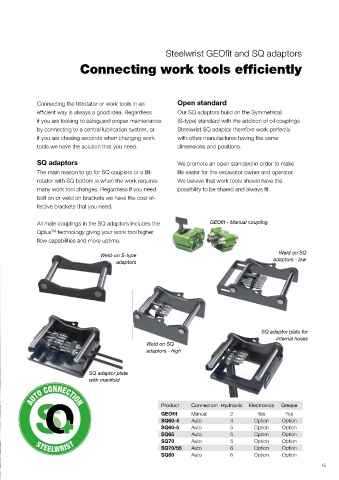

Steelwrist GEOfit and SQ adaptors

Connecting work tools efficiently

Connecting the tiltrotator or work tools in an Open standard
efficient way is always a good idea. Regardless Our SQ adaptors build on the Symmetrical
if you are looking to safeguard proper maintenance (S-type) standard with the addition of oil couplings.
by connecting to a central lubrication system, or Steelwrist SQ adaptor therefore work perfectly
if you are chasing seconds when changing work with other manufactures having the same
tools we have the solution that you need. dimensions and positions.

SQ adaptors We promote an open standard in order to make
The main reason to go for SQ couplers or a tilt- life easier for the excavator owner and operator.
rotator with SQ bottom is when the work requires We believe that work tools should have the
many work tool changes. Regardless if you need possibility to be shared and always fit.
bolt on or weld on brackets we have the cost ef-
fective brackets that you need.

All male couplings in the SQ adaptors includes the GEOfit - Manual coupling
TM
Qplus technology giving your work tool higher
flow capabilities and more uptime.

Weld-on S-type Weld on SQ
adaptors adaptors - low

SQ adaptor plate for
internal hoses
Weld on SQ
adaptors - high

SQ adaptor plate
with manifold

AUTO CONNECTION Product Connection Hydraulic Electronics Grease
GEOfit Manual 2 Yes Yes
SQ60-4 Auto 4 Option Option
SQ60-5 Auto 5 Option Option
SQ65 Auto 5 Option Option
STEELWRIST SQ70 Auto 5 Option Option
SQ70/55 Auto 6 Option Option
SQ80 Auto 6 Option Option
