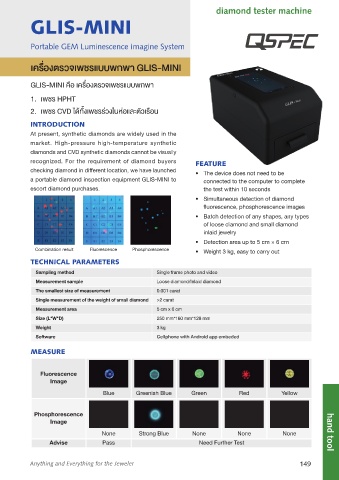

Page 149 - TTI Catalogue 2017 final

diamond tester machine
GLIS-MINI

Portable GEM Luminescence Imagine System

เครื่องตรวจเพชรแบบพกพา GLIS-MINI

GLIS-MINI คือ เครื่องตรวจเพชรแบบพกพา

1. เพชร HPHT

2. เพชร CVD ได้ทั้งเพชรร่วงในห่อและตัวเรือน

INTRODUCTION

At present, synthetic diamonds are widely used in the
market. High-pressure high-temperature synthetic
diamonds and CVD synthetic diamonds cannot be visually
recognized. For the requirement of diamond buyers FEATURE
checking diamond in different location, we have launched
• The device does not need to be
a portable diamond inspection equipment GLIS-MINI to connected to the computer to complete
escort diamond purchases. the test within 10 seconds
• Simultaneous detection of diamond
fluorescence, phosphorescence images
• Batch detection of any shapes, any types
of loose diamond and small diamond
inlaid jewelry
• Detection area up to 5 cm × 6 cm
Combination result Fluorescence Phosphorescence • Weight 3 kg, easy to carry out
TECHNICAL PARAMETERS

Sampling method Single frame photo and video
Measurement sample Loose diamond/Inlaid diamond
The smallest size of measurement 0.001 carat
Single measurement of the weight of small diamond >2 carat
Measurement area 5 cm x 6 cm
Size (L*W*D) 250 mm*160 mm*128 mm
Weight 3 kg
Software Cellphone with Android app embeded

MEASURE

Fluorescence
Blue Greenish Blue Green Red Yellow

Phosphorescence
None Strong Blue None None None hand tool
Advise Pass Need Further Test
