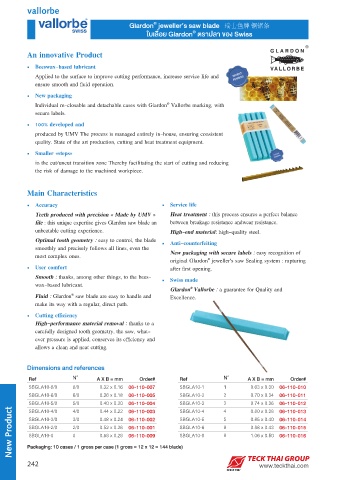

Page 242 - TTI Catalogue 2017 final

vallorbe

®
Glardon jeweller’s saw blade 瑞士鱼牌 钢锯条
®
ใบเลื่อย Glardon ตราปลา ของ Swiss

An innovative Product

• Beeswax-based lubricant
Applied to the surface to improve cutting performance, increase service life and
ensure smooth and fluid operation.
• New packaging
Individual re-closable and detachable cases with Glardon Vallorbe marking, with
®
secure labels.
• 100% developed and
produced by UMV The process is managed entirely in-house, ensuring consistent
quality. State of the art production, cutting and heat treatment equipment.
• Smaller «steps»

in the cut/uncut transition zone Thereby facilitating the start of cutting and reducing
the risk of damage to the machined workpiece.

Main Characteristics

• Accuracy • Service life
Teeth produced with precision « Made by UMV » Heat treatment : this process ensures a perfect balance
file : this unique expertise gives Glardon saw blade an between breakage resistance andwear resistance.
unbeatable cutting experience. High-end material: high-quality steel.
Optimal tooth geometry : easy to control, the blade • Anti-counterfeiting
smoothly and precisely follows all lines, even the
most complex ones. New packaging with secure labels : easy recognition of
original Glardon jeweller’s saw Sealing system : rupturing
®
• User comfort after first opening.
Smooth : thanks, among other things, to the bees- • Swiss made
wax-based lubricant.
Glardon Vallorbe : a guarantee for Quality and
®
®
Fluid : Glardon saw blade are easy to handle and Excellence.
make its way with a regular, direct path.
• Cutting efficiency
High-performance material removal : thanks to a
carefully designed tooth geometry, the saw, what-
ever pressure is applied, conserves its efficiency and
allows a clean and neat cutting.

Dimensions and references
Ref N° A X B = mm Order# Ref N° A X B = mm Order#
SBGLA10-8/0 8/0 0.32 x 0.16 06-110-007 SBGLA10-1 1 0.63 x 0.30 06-110-010
SBGLA10-6/0 6/0 0.36 x 0.18 06-110-005 SBGLA10-2 2 0.70 x 0.34 06-110-011
SBGLA10-5/0 5/0 0.40 x 0.20 06-110-004 SBGLA10-3 3 4 0.74 x 0.36 06-110-012
SBGLA10-4
New Product cleaning Packaging: 10 cases / 1 gross per case (1 gross = 12 x 12 = 144 blade) 5 6 8 0.85 x 0.40 06-110-014
4/0
SBGLA10-4/0
0.80 x 0.38 06-110-013
0.44 x 0.22 06-110-003
SBGLA10-3/0
3/0
SBGLA10-5
0.48 x 0.24 06-110-002
2/0
SBGLA10-6
SBGLA10-2/0
0.88 x 0.43 06-110-015
0.52 x 0.26 06-110-001
0
SBGLA10-0
SBGLA10-8
1.06 x 0.50 06-110-016
0.58 x 0.28 06-110-009
242 www.teckthai.com
