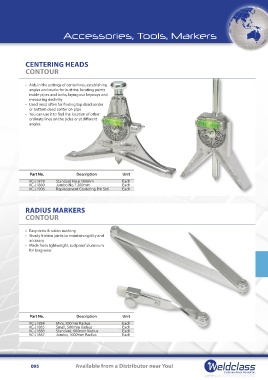

Page 95 - Weldclass_Catalogue_2017_Mobile

Accessories, Tools, Markers

CENTERING HEADS
CONTOUR

• Aids in the settings of centerlines, establishing
angles and marks for butt-ins, locating points
inside pipes and tanks, laying out keyways and
measuring declivity
• Used most often for finding top dead center
or bottom dead center on pipe
• You can use it to find the location of other
ordinate lines on the sides or at different
angles.

Part No. Description Unit
KC-J1879 Standard No.6 100mm Each
KC-J1880 Jumbo No.7 200mm Each
KC-J1906 Replacement Centering Pin Std Each

RADIUS MARKERS
CONTOUR

• Easy circle & radius marking
• Sturdy friction joints to maintain rigidity and
accuracy
• Made from lightweight, rustproof aluminum
for long wear

Part No. Description Unit
KC-J1884 Mini, 200mm Radius Each
KC-J1885 Small, 500mm Radius Each
KC-J1886 Standard, 600mm Radius Each
KC-J1887 Jumbo, 1000mm Radius Each

095 Available from a Distributor near You!
