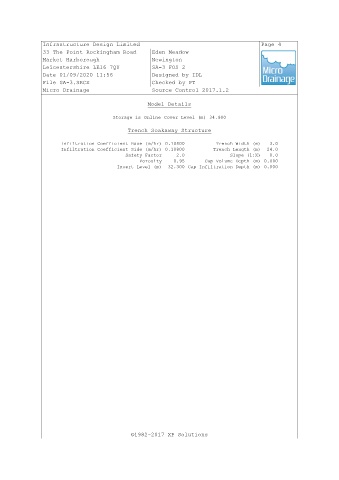

Page 125 - Eden Meadow 35 houses application as of 12 October

Infrastructure Design Limited Page 4
33 The Point Rockingham Road Eden Meadow
Market Harborough Newington
Leicestershire LE16 7QU SA-3 FOS 2
Date 01/09/2020 11:56 Designed by IDL
File SA-3.SRCX Checked by PT
Micro Drainage Source Control 2017.1.2

Model Details

Storage is Online Cover Level (m) 34.900

Trench Soakaway Structure

Infiltration Coefficient Base (m/hr) 0.10800 Trench Width (m) 3.0
Infiltration Coefficient Side (m/hr) 0.10800 Trench Length (m) 24.0
Safety Factor 2.0 Slope (1:X) 0.0
Porosity 0.95 Cap Volume Depth (m) 0.000
Invert Level (m) 32.300 Cap Infiltration Depth (m) 0.000

©1982-2017 XP Solutions
