Page 273 - Eden Meadow 35 houses application as of 12 October

Esquire Developments NOTES:

Do Not Scale.
Report all discrepancies, errors and omissions.

Verify all dimensions on site before commencing any work on site or
preparing shop drawings.
All materials, components and workmanship are to comply with the
relevant British Standards, Codes of Practice, and appropriate
manufacturers recommendations that from time to time shall apply.
For all specialist work, see relevant drawings.
This drawing and design are copyright of Clague LLP
Registration number OC335948.

Rev Date Description
A 28/02/2020 First Issue
B 04/03/2020 Client comment amendments
C 10/03/2020 Client comment amendments
D 12/03/2020 Client comment amendments
E 07/09/2020 Plot number amendments

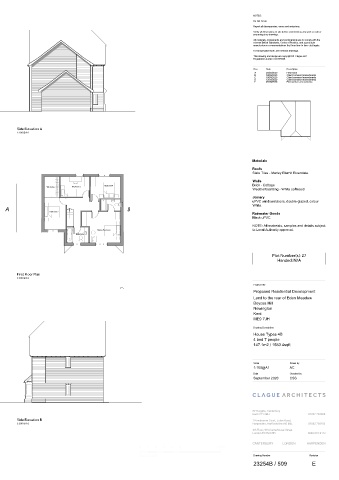

Front Elevation Side Elevation A
1:100 @ A1 1:100 @ A1

Materials

Roofs
Slate Tiles - Marley Eternit Rivendale.

DW
Walls
Utility Bedroom 4 Brick - Cottage
Wardrobe Bedroom 3
Oven Dining / Living Room
Kitchen Weatherboarding - White softwood
SINGLE DOUBLE
Joinery
uPVC windows/doors, double-glazed, colour
White.
A B A B
Bedroom 2
Rainwater Goods
Pantry St.
DOUBLE
WC Black uPVC.
NOTE: All materials, samples and details subject
Sitting Room
Master Bedroom to Local Authority approval.
Bathroom
Hall DOUBLE

Plot Number(s): 27

Handed: N/A

Ground Floor Plan First Floor Plan
1:100 @ A1 1:100 @ A1
Project Title

Proposed Residential Development

Land to the rear of Eden Meadow
Boyces Hill
Newington

Kent
ME9 7JH

Drawing Description

House Types 4B
4 bed 7 people
147.1m2 / 1583.4sqft

Scale Drawn by
1:100@A1 AC
Date Checked by
September 2020 CSS

62 Burgate, Canterbury
Kent CT1 2BH 01227 762060

Rear Elevation Side Elevation B 1 Kinsbourne Court, Luton Road,
1:100 @ A1 1:100 @ A1 Harpenden, Hertfordshire Al5 3BL 01582 765102

4th Floor, 99 Charterhouse Street
London EC1M 6HR 0203 597 6112

CANTERBURY LONDON HARPENDEN
0 1 2 3 4 5 10m

Scale 1:100 Drawing Number Revision
Proposed Housetypes
23254B / 509 E
