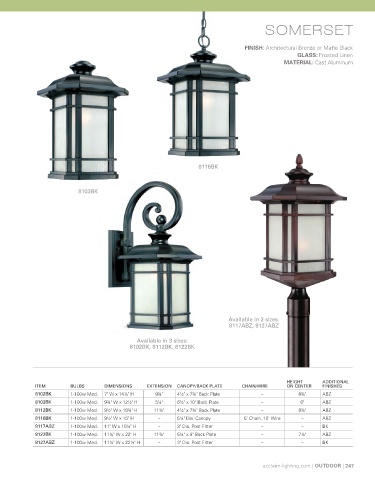

Page 247 - 2020 Acclaim Lighting Catalog

SOMERSET

FINISH: Architectural Bronze or Matte Black
GLASS: Frosted Linen
MATERIAL: Cast Aluminum

8116BK

8103BK

Available in 2 sizes:
8117ABZ, 8127ABZ

Available in 3 sizes:
8102BK, 8112BK, 8122BK

HEIGHT ADDITIONAL
ITEM BULBS DIMENSIONS EXTENSION CANOPY/BACK PLATE CHAIN/WIRE ON CENTER FINISHES
8102BK 1-100w Med. 7" W x 14¼" H 9¾" 4½" x 7¾" Back Plate – 6¾" ABZ
8103BK 1-100w Med. 9¾" W x 12½" H 5¼" 6½" x 10" Back Plate – 6" ABZ
8112BK 1-100w Med. 9½" W x 18¾" H 11¾" 4½" x 7¾" Back Plate – 8¾" ABZ
8116BK 1-100w Med. 9½" W x 15" H – 5¼" Dia. Canopy 5' Chain, 10' Wire – ABZ
8117ABZ 1-100w Med. 11" W x 19¼" H – 3" Dia. Post Fitter – – BK
8122BK 1-100w Med. 11¼" W x 22" H 11¾" 5¼" x 9" Back Plate – 7¼" ABZ
8127ABZ 1-100w Med. 11¼" W x 22½" H – 3" Dia. Post Fitter – – BK

acclaim-lighting.com | OUTDOOR | 247
