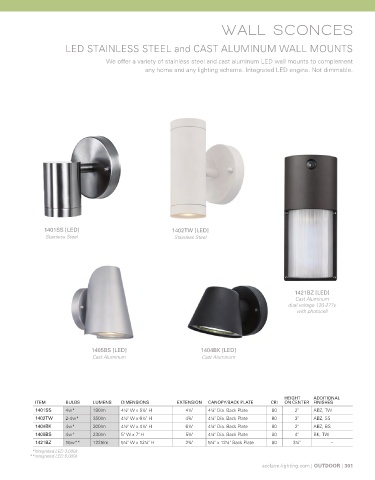

Page 301 - 2020 Acclaim Lighting Catalog

WALL SCONCES

LED STAINLESS STEEL and CAST ALUMINUM WALL MOUNTS

We offer a variety of stainless steel and cast aluminum LED wall mounts to complement
any home and any lighting scheme. Integrated LED engine. Not dimmable.

1401SS [LED] 1402TW [LED]
Stainless Steel Stainless Steel

1421BZ [LED]
Cast Aluminum
dual voltage 120-277v
with photocell

1405BS [LED] 1404BK [LED]
Cast Aluminum Cast Aluminum

HEIGHT ADDITIONAL
ITEM BULBS LUMENS DIMENSIONS EXTENSION CANOPY/BACK PLATE CRI ON CENTER FINISHES
1401SS 4w* 190lm 4½" W x 5¼" H 4½" 4¼" Dia. Back Plate 80 2" ABZ, TW
1402TW 2-4w* 350lm 4½" W x 6½" H 4¾" 4¼" Dia. Back Plate 80 3" ABZ, SS
1404BK 4w* 300lm 4½" W x 4½" H 6½" 4¼" Dia. Back Plate 80 2" ABZ, BS
1405BS 4w* 230lm 5" W x 7" H 5¾" 4¼" Dia. Back Plate 80 4" BK, TW
1421BZ 15w** 1225lm 5¼" W x 12¼" H 2¾" 5¼" x 12¼" Back Plate 80 3¼" –
*Integrated LED 3,000k
**Integrated LED 5,000k
acclaim-lighting.com | OUTDOOR | 301
