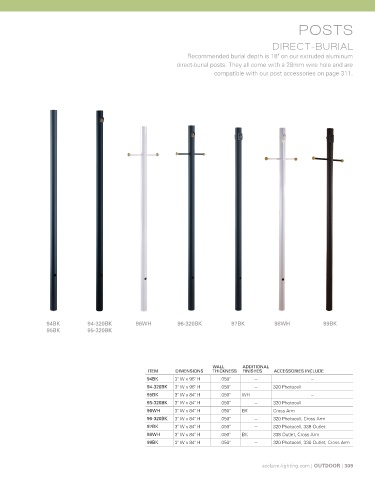

Page 309 - 2020 Acclaim Lighting Catalog

POSTS

DIRECT-BURIAL
Recommended burial depth is 18" on our extruded aluminum
direct-burial posts. They all come with a 28mm wire hole and are
compatible with our post accessories on page 311.

94BK 94-320BK 96WH 96-320BK 97BK 98WH 99BK
95BK 95-320BK

WALL ADDITIONAL
ITEM DIMENSIONS THICKNESS FINISHES ACCESSORIES INCLUDE
94BK 3" W x 96" H .050" – –
94-320BK 3" W x 96" H .050" -- 320 Photocell
95BK 3" W x 84" H .050" WH –
95-320BK 3" W x 84" H .050" – 320 Photocell
96WH 3" W x 84" H .050" BK Cross Arm
96-320BK 3" W x 84" H .050" – 320 Photocell, Cross Arm
97BK 3" W x 84" H .050" – 320 Photocell, 338 Outlet
98WH 3" W x 84" H .050" BK 338 Outlet, Cross Arm
99BK 3" W x 84" H .050" – 320 Photocell, 338 Outlet, Cross Arm

acclaim-lighting.com | OUTDOOR | 309
