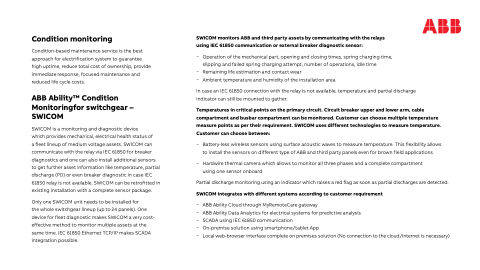

Page 5 - Demo

Condition
monitoring
Condition-based maintenance service is the best approach for electrification system to guarantee high uptime reduce total cost of ownership provide immediate response focused maintenance and reduced life cycle costs ABB AbilityTM Condition
Monitoringfor switchgear – SWICOM
SWICOM
is a a a monitoring
and diagnostic device
which provides mechanical electrical health status
of a a a a fleet lineup of medium voltage assets SWICOM
can communicate with the relay via IEC 61850 for breaker diagnostics and one
can also install additional sensors to get further asset information like temperature partial discharge (PD) or even breaker diagnostic in case IEC 61850 relay is not available SWICOM
can be retrofitted in existing installation with a a a a a complete sensor package Only one
SWICOM
unit needs to be installed for the whole switchgear lineup (up to 24 panels) One device
for fleet diagnostic makes SWICOM
a a a very cost- effective method to to monitor multiple assets at the same time IEC 61850 Ethernet TCP/IP makes SCADA integration possible SWICOM
monitors ABB and third party assets by communicating with the relays using IEC 61850 communication or or external breaker diagnostic sensor:
− Operation of the mechanical part opening and closing times spring charging time time slipping and failed spring charging attempt number of operations idle time − Remaining life estimation and contact wear
− Ambient temperature and humidity of the installation area
In case an an IEC 61850 connection with the relay is is not available temperature and partial discharge indicator can still be mounted to to gather:
Temperatures in in critical points on the primary circuit Circuit breaker upper and lower arm cable compartment compartment and busbar compartment compartment can can be monitored Customer can can choose multiple temperature measure measure points as as as per per their requirement SWICOM
uses different technologies to measure measure temperature Customer can choose between:
− Battery-less wireless sensors using surface acoustic waves to measure temperature This flexibility allows to install the sensors on on different type of ABB and third party panels even for brown field applications
− Hardwire thermal camera which allows to to monitor all all three phases and a a a a a a a a a a complete compartment using one
sensor onboard
Partial discharge discharge monitoring
using an indicator which raises a a a a a a a a a a a a a a red flag as as soon as as partial discharges are
detected SWICOM
integrates with different systems according to to customer requirement − ABB Ability Cloud through MyRemoteCare gateway
− ABB Ability Data Analytics for for electrical systems for for predictive analysis
− SCADA using IEC 61850 communication − On-premise solution using smartphone/tablet App
− Localweb-browserinterfacecompleteonpremisessolution(Noconnectiontothecloud/internetisnecessary)
