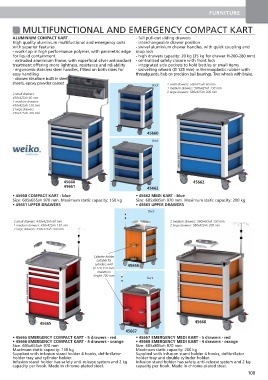

Page 109 - Catalogue 2016 - 17

FURNITURE

MULTIFUNCTIONAL AND EMERGENCY COMPACT KART

ALUMINIUM COMPACT KART - full pull-out sliding drawers
High quality aluminium multifuctional and emergency carts - interchangeable drawer position
with superior features. - swivel aluminium drawer handles, with quick coupling and
- work-top in high performance polymer, with perimetric edge snap lock
for liquid containment - high drawers capacity: 20 kg (35 kg for drawer H-200-280 mm)
- extruded aluminium frame, with superficial silver antioxidant - centralized safety closure with front lock
treatment offering more lightness, resistance and reliability - integrated side pockets to hold bottles or small items
- ergonomic stainless steel handles, fitted on both sides for - swivelling wheels (Ø 125 mm) in thermoplastic rubber with
easy handling threadguards, hub on precision ball bearings. Two wheels with brake.
- drawer structure built in steel
sheets, epoxy powder coated 2 small drawers: 580x425xh 60 mm
Back
1 medium drawers: 580x425xh 130 mm
2 large drawers: 580x425xh 200 mm
2 small drawers:
430x425xh 60 mm
1 medium drawers:
430x425xh 130 mm
2 large drawers:
430x425xh 200 mm

45660
Back

45660 45662
45661 45662

• 45660 COMPACT KART - blue • 45662 MEDI KART - blue
Size: 605x655xh 970 mm. Maximum static capacity: 150 kg Size: 605x805xh 970 mm. Maximum static capacity: 200 kg
• 45661 UPPER DRAWERS • 45663 UPPER DRAWERS
Back

2 small drawers: 430x425xh 60 mm 2 medium drawers: 580x425xh 130 mm
1 medium drawers: 430x425xh 130 mm 2 large drawers: 580x425xh 200 mm
2 large drawers: 430x425xh 200 mm

Cylinder holder
suitable for
cylinders with 45666
Ø 120-150 mm,
maximum
height 700 mm
Back

45665 45668
45667
• 45665 EMERGENCY COMPACT KART - 5 drawers - red • 45667 EMERGENCY MEDI KART - 5 drawers - red
• 45666 EMERGENCY COMPACT KART - 4 drawers - orange • 45668 EMERGENCY MEDI KART - 4 drawers - orange
Size: 605x655xh 970 mm Size: 605x805xh 970 mm
Maximum static capacity: 150 kg Maximum static capacity: 200 kg
Supplied with infusion stand holder 4 hooks, defibrillator Supplied with infusion stand holder 4 hooks, defibrillator
holder tray and cylinder holder. holder tray and double cylinder holder.
Infusion stand holder has safety anti-release system and 2 kg Infusion stand holder has safety anti-release system and 2 kg
capacity per hook. Made in chrome-plated steel. capacity per hook. Made in chrome-plated steel.
100
