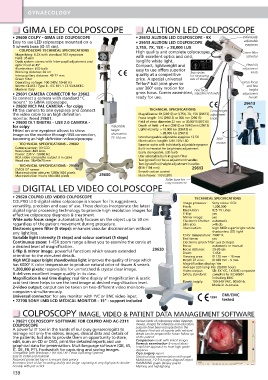

Page 148 - Catalogue 2016 - 17

GYNAECOLOGY

GIMA LED COLPOSCOPE ALLTION LED COLPOSCOPE

• 29600 COLPY - GIMA LED COLPOSCOPE • 29612 ALLTION LED COLPOSCOPE - 9X Individually
Easy to use LED colposcope mounted on a • 29613 ALLTION LED COLPOSCOPE adjustable
eyepieces
5 wheels base (Ø 41 cm). 3,75X, 7X, 15X - > 28,000 LUX
COLPOSCOPE TECHNICAL SPECIFICATIONS High quality and complete colposcopes,
Magnifying: 8.2X with standard 10X eyepieces Green filter
activator
Field: 35 mm with excellent optics and cold,
Optic system: stereo with inter-pupil adjustment and longlife white light.
optic head at 45° Compact, lightweight and Head tilt
Illumination: LED bulb easy to use offers superior adjustment
Working distance: 28 cm Two circles knob
Interpupillary distance: 48-77 mm quality at a competitive for measuring
Green filter price. A special universal size of tissues
Operating voltage: 100-240V, 50-60 Hz Teflon ball joint gives to Gross focus
®
Norms: CLASS I Type B - IEC 601-1 CE 93/42/EEC. and fine
Made in Italy user 360° easy motion for Fine focus height
• 29601 CAMERA CONNECTOR for 29602 gross focus. Comes assembled, adjustment handle adjustment
To connect a camera with standard "C ready for use. handle
mount" to GIMA colposcope. 29613
• 29602 MC1 PAL CAMERA - for colpy
Fit the camera to one eyepiece and connect TECHNICAL SPECIFICATIONS Gross height
the video cable to an high definition Magnification 9X (29612) or 3,75X, 7X, 15X (29613) adjustment
monitor. Need 29601. Focus length: 316 (29612) or 300 mm (29613) knob
• 29603 DL1 DIGITAL - USB 2.0 CAMERA - Field of view: diameter 22 mm or 30.93/15.50/7.64
for colpy Adjustable Depth of field: > 4 mm (29612) or 18/4/2 mm (29613)
Fitted on one eyepiece allows to show height Light intensity: > 10.000 lux (29612) or
image on the monitor through USB connection, observation > 28.000 lux (29613)
becoming an high definition videocolposcope. 73-104 cm Interchangeable adjustable eyepiece 12.5X 360°
Illumination: longlife 5.9V / 5W LED
TECHNICAL SPECIFICATIONS - 29602 Superior optics with individually adjustable eyepiece motion
Camera sensor: 1/3 CCD Built-in rheostat for brightness adjustment
Resolution: 480 lines Easily changeable, LED bulb
Power: 230 V - 50/60 Hz
RCA video composite output 3 m cable User-selectable built-in green filter
Head size: 38x40x70 mm Two (gross/fine) focus adjustment handles
TECHNICAL SPECIFICATIONS - 29603 Two (gross/fine) height adjustment handles
CMOS /3“ sensor (838-1194 mm) 29613
Max resolution pictures 1280x1024 pixels 29600 Smooth action control
Max resolution movie 440x480 pixels Main Power: 110V/220V
Roller base for
easy movement
DIGITAL LED VIDEO COLPOSCOPE
• 29620 COLPRO LED VIDEO COLPOSCOPE TECHNICAL SPECIFICATIONS
COLPRO LED digital video colposcope is known for its ruggedness, Image processor: Sony colour CCD
versatility, precision and ease of use. These devices incorporate the latest Pixels: 1,200,000
digital signal processing technology to provide high resolution images for Resolution: 825 TV Lines
effective colposcopy diagnosis & treatment. E-flip: yes
yes
Mirror image:
Wide auto focus range: automatically focuses on the object up to 30 cm Electronic Shutter: automatic
regardless of the patient movement during procedure. S/N ratio: >48 db
Electronic green filter (5 steps): enhances vascular discrimination without Illumination: high MCD super bright white
shadowless LED light
any light loss. Color temperature: 7000° K
Variable light intensity (5 steps) and colour contrast (5 steps) Test timer: yes
Continuous zoom: 1-45X zoom range allows you to examine the cervix at Electronic green filter: yes (5 steps)
a desired level of magnification. 29620 Focus: automatic or manual
E-flip & mirror image: powerful functions which ensure extended Focus distance: 20-30 cm
1-45X
Zoom:
attention to the minutest details. Viewing area: Ø 170 mm - 10 mm
High MCD super bright shawdowless light: improves the quality of image which Depth of view: Ø 200 mm - 5 mm
has 6000° K color temperature to produce natural color of tissues & vessels. Magnification display: Yes
Average LED lamp life: 20,000 hours
1,200,000 pixels: responsible for unmatched & crystal clear image. Video output: SD: 1X Y/C, 1X BNC composite
It delivers excellent image quality in its class. Safety standard: complies to IEC 60601
Magnification & real time display: real time display of magnification & acetic including EMC
acid test timer helps to see the best image at desired magnification level. Power supply: 100-240 VAC, 50/60 Hz

Made in Australia
2-video output: output can be taken on two different video monitors-
computers simultaneously.
Universal connector: for any monitor with Y/C or BNC video input. 1293 EMI/EMC
• 72708 SONY LMD LCD MEDICAL MONITOR - 15" - support included tested
COLPOSCOPY IMAGE, VIDEO & PATIENT DATA MANAGEMENT SOFTWARE
• 29621 COLPOSCOPY SOFTWARE FOR COLPRO AND AC-2311 Various kinds of colposcopy video clippings,
COLPOSCOPE movies, images for reference and education
purpose have been incorporated in the
A powerful IT tool in the hands of our busy gynaecologists to software Print out of reports with relevant
manage not only the videos, images, clinical data and details of details can be prepared for future follow-up
the patients, but also to provide them an opportunity to store, of the patient
edit, burn on CD or DVD, print the detailed reports and use Comparison mode with linked images
Forensic examination & sexual abuse
graphical data for presentation. Multilanguage software (GB, ES, Leep/Lleitz approach to treat high grade
IT, DE, FR, PT). Footswitch for capturing and saving images. dysplasia
Compatible with Windows 7 (64-bit) / XP / Vista Operating Systems Cryo surgery report
Easy to install and maintain Statistical data representation with graph
Password protected log-in to ensure data privacy Multiformat 1-2-3-4 images diagnosis report
Enormous level of live recording facility and image capturing at very high pixels simulta- HAMMOND graph (biopsy graph)
neously with just a click Marking and highlighting
