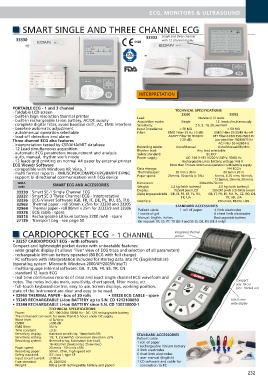

Page 241 - Catalogue 2016 - 17

ECG, MONITORS & ULTRASOUND

SMART SINGLE AND THREE CHANNEL ECG

33332 Single and three channel
33330 with 12 channel display
0123

INTERPRETATION

PORTABLE ECG - 1 and 3 channel
- foldable LCD screen TECHNICAL SPECIFICATIONS
- built-in high resolution thermal printer Lead: 33330 Standard 12 leads 33332

- built-in rechargeable Li-ion battery, AC/DC supply Acquisition mode: Single 12 leads simultaneously
- complete digital filter, avoid baseline drift, AC, EMG interfere Sensitivity: 2.5, 5, 10, 20, mm/mV
- baseline automatic adjustment Input impedance: > 50 MΩ > 50 MΩ
- auto/manual operation selectable Filter: EMG Filter 35 Hz (-3 dB) EMG Filter 25/35/40 Hz off
- lead-off detection and alarm AC/DFT Filter 50 Hz/60Hz DFT Fliter 0.05/0.15/0.25/0.5 Hz
Three channel ECG also features (-20 dB) Low pass filter 150/100/75 Hz
- interpretation tested by CSE/AHA/MIT database AC Filter 50 Hz/60 Hz
- 12 Lead simultaneous acquisition Recording mode: Auto/Manual Auto/Manual/Rhythm
Any lead selectable
Rhythm lead:

- automatic ECG parameters measurement and analysis Safety standard: IEC I/CF
- auto, manual, rhythm work mode Power supply: AC: 100 V-115 V/220 V-240 V, 50/60 Hz
- 12 leads grid printing on normal A4 paper by external printer Rechargeable Li-ion battery: voltage 14.8 V
ECG Viewer Software More than 3 hours continuous operation with battery supply
- compatible with Windows XP, Vista, 7 Data storage: - 144 ECG's
- multi format reports - XML/SCP/DICOM/PDF/JPG/BMP/TIF/PNG Thermal paper: 50 mm x 30 m 80 mm x 20 m
- support bi-directional communication with ECG device Paper speed: 25mm/s, 50 mm/s (± 3%) 5mm/s, 6.25 mms 10mm/s,
12.5mm/s, 25mm/s, 50 mm/s
GIMA SMART ECG AND ACCESSORIES Dimension: 288x210x70 mm
code Weight: 2.3 kg (with battery) 2.5 kg (with battery)
33330 Smart SE-1 Single Channel ECG Display: 192x64 pixel LCD 320x240 pixels LCD (Wide screen)
33332 Smart SE-3 Three Channel ECG - interpretative Display language selectable GB, IT, FR, ES, PL, RU, GB, IT, FR, ES, RU, PL, CZ, RO, DE,
TR, HR, UA

TR, UA

33336 ECG-Viewer Software (GB, FR, IT, DE, PL, RU, ES, TU) Interface: -- Ethernet, RS232, USB
32963 Thermal paper - roll 50mm x 25m for 33330 and 33305
32964 Thermal paper - roll 80mm x 25m for 33332/3 and 33306 Patient cable STANDARD ACCESSORIES
1 roll of paper
4 limb electrodes
33328 ECG cable - spare 1 bottle of gel 6 chest limb electrodes
33318 Rechargeable Lithium battery 2200 mAh - spare Manual: English, Italian, Rechargeable battery
27139 Transport bag - see page 50 On request: FR, ES, PT, TR (SE-1 and SE-3), DE, RU (SE-3 only)
CARDIOPOCKET ECG - 1 CHANNEL Integrated thermal
printer
• 33257 CARDIOPOCKET ECG - with software
Compact and lightweight pocket device with unbeatable features:
- wide graphic display (it allows "live" view of ECG trace and selection of all parameters)
- rechargeable lithium battery operated (80 ECG with full charge)
- PC software with interpretation included for storing data into PC (English/Italian)
(operating system: Microsoft Windows 2000/XP/2003/Vista/7)
- multilanguage internal software: GB, IT, DE, FR, ES, TR, CN
- standard 12 leads ECG
- real time continuous records of clear and exact single channel ECG waveform and
notes. The notes include mark, sensitivity, chart speed, filter mode, etc Compact:
only 19 cm
- full-touch keyboard control, easy to use. Screen displays, working position, (size: 19x9x4 cm)
state of the instrument are clear and easy to be read.
• 32963 THERMAL PAPER - box of 20 rolls • 33328 ECG CABLE - spare
• 33243 RECHARGEABLE Li-Ion BATTERY up to S.N. CD 1212100050 60x35 mm
• 33244 RECHARGEABLE Li-Ion BATTERY since S.N. CD 130730000-1 wide display
TECHNICAL SPECIFICATIONS
Power: AC: 100-240V, 50/60 Hz - DC: 12V rechargeable battery
The instrument can work for more than 0.5 hours under DC supply
Noise level: ≤15μVp-p
CMRR: >100 dB
EMG filter: 35 Hz
Time constant: ≥3.2s
Sensitivity display: standard sensitivity: 10mm/mV±5% STANDARD ACCESSORIES
Sensitivity setting: 1/2, 1, 2 (cm/mV), conversion deviation ≤5% Patient cable
Recording system: thermal-array, 8 dots/mm (vertical), 1 roll of paper
16 dots/mm (horizontal, 25 mm/sec) 1 rechargeable lithium battery
Paper speed: 25 mm/s - 50 mm/s ±5%
Recording paper: 50mm, 20 m, high-speed roll 4 limb electrodes
Safety standard: IEC class I, type CF 6 chest limb electrodes
Input circuit current: ≤100nA 1 user manual (English)
Fuse standard: AL 220V/2A 1 CD software and cable for
Weight: 800 g (with rechargeable battery and paper) connection to PC
232
