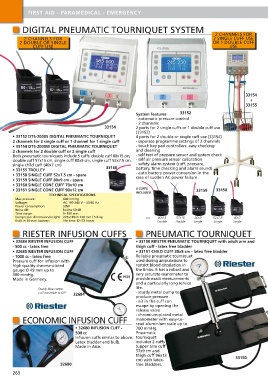

Page 272 - Catalogue 2016 - 17

FIRST AID - PARAMEDICAL - EMERGENCY

DIGITAL PNEUMATIC TOURNIQUET SYSTEM
2 CHANNELS FOR
2 CHANNELS FOR 2 SINGLE CUFF USE
2 DOUBLE OR SINGLE OR 1 DOUBLE CUFF
CUFF USE USE

33154
+
33155

System features 33152
- automatic pressure control
- 2 channels:
33154 2 ports for 2 single cuffs or 1 double cuff use
(33152)
• 33152 DTS-2000S DIGITAL PNEUMATIC TOURNIQUET 4 ports for 2 double or single cuff use (33154)
2 channels for 2 single cuff or 1 channel for 1 single cuff - separate programme settings of 2 channels
• 33154 DTS-2000W DIGITAL PNEUMATIC TOURNIQUET - touch key pad controllers: easy checking
2 channels for 2 double cuff or 2 single cuff and cleaning
Both pneumatic tourniquets include 5 cuffs: double cuff 80x15 cm, - self test of pressure sensor and system check
double cuff 57x15 cm, single cuff 80x9 cm, single cuff 52x7.5 cm, - self air pressure sensor calibration
single child cuff (40x7 cm) 33160 - safety alarm system (cuff, pressure,
• 33155 TROLLEY battery, time checking and alarm sound)
• 33158 SINGLE CUFF 52x7.5 cm - spare - auto battery power conversion in the
• 33159 SINGLE CUFF 80x9 cm - spare case of sudden AC power failure
• 33160 SINGLE CONE CUFF 70x10 cm
• 33161 SINGLE CONE CUFF 90x12 cm 5 CUFFS 33159 33158
TECHNICAL SPECIFICATIONS INCLUDED
Max pressure: 600 mmHg
Voltage: AC 100-240 V ~ 50/60 Hz
Power consumption: 50W
Noise dB: below 60 dB
Time range: 5~180 min
Compressor dimension/weight: 225x185xh 240 mm / 5.6 kg cm 80x15 57x15 80x9 52x7.5 40x7
Built in lithium battery: life time 12~72 hours Double Double Single Single Single

RIESTER INFUSION CUFFS PNEUMATIC TOURNIQUET
• 32684 RIESTER INFUSION CUFF • 33150 RIESTER PNEUMATIC TOURNIQUET with adult arm and
- 500 cc - latex free thigh cuff - latex free bladder
• 32685 RIESTER INFUSION CUFF • 33151 CHILD CUFF 38x8 cm - latex free bladder
- 1000 cc - latex free Reliable pneumatic tourniquet
Pressure cuff for infusion with used during amputations to
high quality chrome-plated restrict blood circulation in
gauge Ø 49 mm up to the limbs. It has a robust and
300 mmHg. 0124 very accurate manometer to
Made in Germany. provide exact measurements
and a particularly long service
life.
Sturdy blue cotton
cuff washable at 60° 32684 - sturdy metal pump to
produce pressure
- air in the cuff can
escape by opening the
release valve
- chromium-plated metal
ECONOMIC INFUSION CUFF manometer with easy-to-
• 32680 INFUSION CUFF - read aluminium scale up to
700 mmHg.
500 cc Pneumatic
Infusion cuffs similar to above. tourniquet
Latex bladder and bulb. includes 2 cuffs
Made in Asia. (upper arm cuff
57x9 cm and
thigh cuff 96x13 33150
cm) with latex-
32680 free bladders.

263
