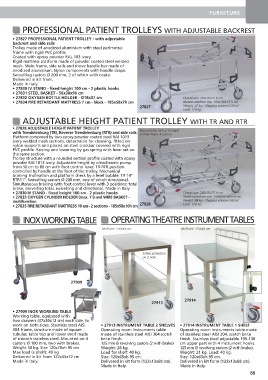

Page 97 - Catalogue 2016 - 17

FURNITURE

PROFESSIONAL PATIENT TROLLEYS WITH ADJUSTABLE BACKREST
• 27827 PROFESSIONAL PATIENT TROLLEY - with adjustable
backrest and side rails
Trolley made of anodized aluminium with steel perimetral
frame with rigid PVC profile.
Coated with epoxy powder RAL 103 ivory.
Rigid mattress platform made of powder coated steel welded
mesh. Main frame, side rails and shove handle bar made of
anodized aluminium. Nylon components with handle shape.
Swivelling castors Ø 200 mm, 2 of which with brake.
Delivered in kit from.
Made in Italy.
• 27830 IV STAND - fixed height 100 cm - 2 plastic hooks
• 27831 STEEL BASKET - 56x38x9h cm
• 27832 OXYGEN BOTTLE HOLDER - Ø18x37 cm Overall size: 202x76x75 h cm
• 27834 FIRE RETARDANT MATTRESS 7 cm - black - 185x58x7h cm Mattres platform size: 190x160x75 h cm
27827 Weight: 47 kg - Shipping volume 0.30 m 3
Load: 120 kg

ADJUSTABLE HEIGHT PATIENT TROLLEY WITH TR AND RTR
• 27828 ADJUSTABLE HEIGHT PATIENT TROLLEY
with Trendelenburg (TR), Reverse Trendelenburg (RTR) and side rails. Easy and fast lock of IV stand
at main frame 4 corners
Platform composed by two epoxy powder coated steel RAl 1013
ivory welded mesh sections, detachable for cleaning, fitted on
nylon supports and placed on steel crossbar covered with rigid
PVC profile. Raising and lowering by gas spring with lever set on
the same section.
Trolley structure with a rounded section profile coated with epoxy
powder RAl 1013 ivory. Adjustable height by oleodinamic pump
from 50 cm to 80 cm with foot control lever. TR-RTR position
controlled by handle at the foot of the trolley. Mechanical
braking. Inclination and platform check by a level bubble. TR 14°
RTR11°. Swivelling castors Ø 200 mm, one of which directional.
Simultaneous braking with foot control lever with 3 positions: total
brake, swivelling total, swivelling and directional. Made in Italy.
• 27830 IV STAND - fixed height 100 cm - 2 plastic hooks Overall size: 202x76x75 h cm
• 27833 OXYGEN CYLINDER HOLDER (max. 7 l) and WIRE BASKET - Mattres platform size: 190x60x50/80 h cm
multifunction Weight: 88 kg - Shipping volume 0.65 m 3
• 27835 FIRE RETARDANT MATTRESS 10 cm - 2 sections - 185x58x10h cm 27828 Load: 120 kg

INOX WORKING TABLE OPERATING THEATRE INSTRUMENT TABLES

Shelf size: 120x65 cm Shelf size: 120x65 cm

Safety protection
on 3 sides

27909

27914
27913

• 27909 INOX WORKING TABLE
Working table, equipped with
two drawers (47x30x12 cm) each side, to
work on both sides. Stainless steel AISI • 27913 INSTRUMENT TABLE 2 SHELVES • 27914 INSTRUMENT TABLE 1 SHELF
304 frame, structure made of square Operating room instruments table Operating room instruments table made
tubular, table top and lower shelf made made of stainless steel AISI 304 scotch of stainless steel AISI 304, scotch brite
of smooth stainless steel. Mounted on 4 brite finish. finish. Stainless steel adjustable 105-136
castors Ø 100 mm, two with brakes. 125 mm Ø revolving castors (2 with brake). cm upper part with 4 instrument hooks.
Weight 50 kg. Size 120x70xh 95 cm Weight: 28 kg. 125 mm Ø revolving castors (2 with brake).
Max load (x shelf): 40 kg Load for shelf: 40 kg. Weight: 21 kg. Load: 40 kg.
Delivered in kit form 122x35x72 cm Size: 120x65xh 95 cm. Size: 120x65xh 95 cm.
Made in Italy. Delivered in kit form (123x13x68 cm). Delivered in kit form (123x13x68 cm).
Made in Italy. Made in Italy.
