Diamond, Coring and Sawing

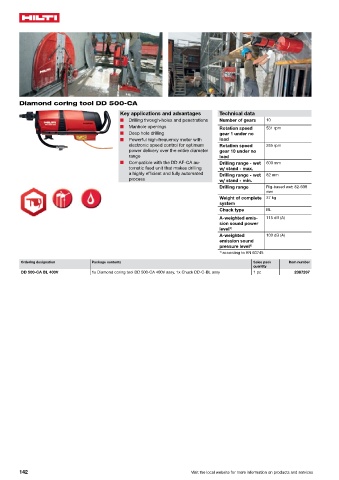

Diamond coring tool DD 500-CA Hydraulic coring tool DD 750-HY
Key applications and advantages Technical data Key applications and advantages Technical data
■ Drilling through-holes and penetrations Number of gears 10 ■ Large penetrations Number of gears 4
■ Manhole openings Rotation speed 531 rpm ■ Deep-hole drilling Maximum bit core 750 mm
■ Deep hole drilling gear 1 under no ■ Underwater drilling capacity
■ Powerful high-frequency motor with load ■ Quickly assembled modular system Rotation speed 265 rpm
electronic speed control for optimum Rotation speed 265 rpm ■ One-man operation gear 10 under no
power delivery over the entire diameter gear 10 under no load
range load
Drilling range - wet 750 mm
■ Compatible with the DD AF-CA au- Drilling range - wet 600 mm w/ stand - max. Diamond, Diamond, Coring and Coring and Sawing Sawing
tomatic feed unit that makes drilling w/ stand - max. Drilling range - wet 52 mm
a highly efficient and fully automated Drilling range - wet 82 mm w/ stand - min.
process w/ stand - min.
Drilling range Rig-based wet: 52-750
Drilling range Rig-based wet: 82-600 mm
mm
Base Materials Concrete
Weight of complete 37 kg
system Maximum torque gear 1: 710 Nm; gear
2: 394 Nm; gear 3: 191
Chuck type BL Nm; gear 4: 142 Nm
1) according to EN 60745
A-weighted emis- 115 dB (A)
sion sound power
level 1) Ordering designation Package contents Sales pack Item number
quantity
A-weighted 100 dB (A) DD 750-HY 1 pc
emission sound
pressure level 1)
1) according to EN 60745
Ordering designation Package contents Sales pack Item number
quantity
DD 500-CA BL 400V 1x Diamond coring tool DD 500-CA 400V assy, 1x Chuck DD-C-BL assy 1 pc 2087267

142 Visit the local website for more information on products and services www.hilti.group 143
