Direct Fastening

Collated nail X-GHP MX

Key applications and advantages
■ Fastening to hard concrete
■ Fastening metal track up to 2 mm
■ Ballistic point and high hardness for best performance in hard
concrete

Ordering designation Base materials Fastener shank length Fastener shank diameter Sales pack Item number
quantity
X-GHP 20 MX Concrete (hard) 20 mm 3 mm 750 pc 285724

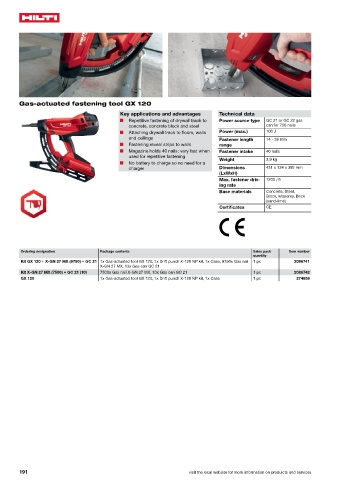

Gas-actuated fastening tool GX 120

Key applications and advantages Technical data
■ Repetitive fastening of drywall track to Power source type GC 21 or GC 22 gas
concrete, concrete block and steel can for 750 nails
■ Attaching drywall track to floors, walls Power (max.) 100 J
and ceilings Fastener length 14 - 39 mm Collated nail X-GN MX
■ Fastening reveal strips to walls range Key applications and advantages
■ Magazine holds 40 nails: very fast when Fastener intake 40 nails ■ Fastening to concrete, block and masonry
used for repetitive fastening
Weight 3.9 kg ■ Fastening metal track up to 2 mm thick
■ No battery to charge so no need for a ■ Fastening wood up to 24 mm thick
charger Dimensions 431 x 134 x 392 mm
(LxWxH) ■ Robust nail with low driving failure rate
Max. fastener driv- 1200 / h ■ Available in lengths up to 39 mm
ing rate
Ordering designation Base materials Fastener shank length Fastener shank diameter Sales pack Item number
Base materials Concrete, Steel, quantity
Block, Masonry, Brick
X-GN 20 MX Concrete, Masonry, Brick, Concrete block, Sand-lime block 20 mm 2.6 mm 750 pc 340232
(sand-lime)
X-GN 27 MX Concrete, Masonry, Brick, Concrete block, Sand-lime block 27 mm 2.6 mm 750 pc 340230
Certificates CE
X-GN 32 MX Concrete, Masonry, Brick, Concrete block, Sand-lime block 32 mm 2.6 mm 750 pc 340233
X-GN 39 MX Concrete, Masonry, Brick, Concrete block, Sand-lime block 39 mm 2.6 mm 750 pc 340234
Direct Direct |Fastening Fastening

Ordering designation Package contents Sales pack Item number
quantity
Kit GX 120 + X-GN 27 MX (9750) + GC 21 1x Gas-actuated tool GX 120, 1x Drift punch X-120 NP kit, 1x Case, 9750x Gas nail 1 pc 2086741
X-GN 27 MX, 13x Gas can GC 21
Kit X-GN 27 MX (7500) + GC 21 (10) 7500x Gas nail X-GN 27 MX, 10x Gas can GC 21 1 pc 2086742 Collated nail X-EGN MX
GX 120 1x Gas-actuated tool GX 120, 1x Drift punch X-120 NP kit, 1x Case 1 pc 274638
Key applications and advantages
■ Fastening to steel
■ Fastening drywall track to steel
■ Robust nail with low driving failure rate
Ordering designation Base materials Fastener shank length Fastener shank diameter Sales pack Item number
quantity
X-EGN 14 MX Steel 14 mm 3 mm 750 pc 340231

GX 120 gas can GC 20/21/22
Ordering designation Sales pack Item number
quantity
GC 21 1 pc 38865

www.hilti.group
191 visit the local webiste for more information on produicts and services 192
