Direct Fastening

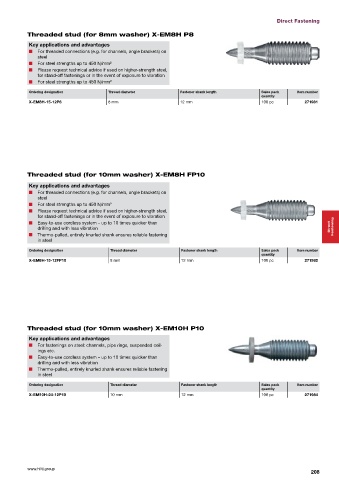

Collated formwork nail X-CT MX Threaded stud (for 8mm washer) X-EM8H P8
Key applications and advantages Key applications and advantages
■ Temporary fastening of wood to concrete ■ For threaded connections (e.g. for channels, angle brackets) on
■ Predefined shear points on the fastener for controlled fastener steel
removal ■ For steel strengths up to 450 N/mm²
■ Fast removal without need for a crowbar ■ Please request technical advice if used on higher-strength steel,
for stand-off fastenings or in the event of exposure to vibration
■ For steel strengths up to 450 N/mm²
Ordering designation Thread diameter Fastener shank length Sales pack Item number
quantity
X-EM8H-15-12P8 8 mm 12 mm 100 pc 271981
Ordering designation Base materials Fastener shank length Fastener shank diameter Sales pack Item number
quantity
X-CT 52 MX Concrete 52 mm 3.7 mm 100 pc 383576

M6 threaded stud (with 8mm washer) X-EM6H FP8 Threaded stud (for 10mm washer) X-EM8H FP10
Key applications and advantages Key applications and advantages
■ For threaded connections (e.g. for channels, angle brackets) on ■ For threaded connections (e.g. for channels, angle brackets) on
steel steel
■ Please request technical advice if used on higher-strength steel, ■ For steel strengths up to 450 N/mm²
for stand-off fastenings or in the event of exposure to vibration
■ Please request technical advice if used on higher-strength steel,
■ For steel strengths up to 450 N/mm² for stand-off fastenings or in the event of exposure to vibration
■ Easy-to-use cordless system – up to 10 times quicker than
Ordering designation Thread diameter Fastener shank length Sales pack Item number Direct |Fastening
quantity drilling and with less vibration
X-EM6H-20-9FP8 6 mm 9 mm 100 pc 271961 ■ Thermo-pulled, entirely knurled shank ensures reliable fastening
in steel
Ordering designation Thread diameter Fastener shank length Sales pack Item number
quantity
X-EM8H-15-12FP10 8 mm 12 mm 100 pc 271982

Threaded stud (for 10mm washer) X-EM10H P10
Key applications and advantages
■ For fastenings on steel: channels, pipe rings, suspended ceil-
ings etc.
■ Easy-to-use cordless system – up to 10 times quicker than
drilling and with less vibration
■ Thermo-pulled, entirely knurled shank ensures reliable fastening
in steel
Ordering designation Thread diameter Fastener shank length Sales pack Item number
quantity
X-EM10H-24-12P10 10 mm 12 mm 100 pc 271984
