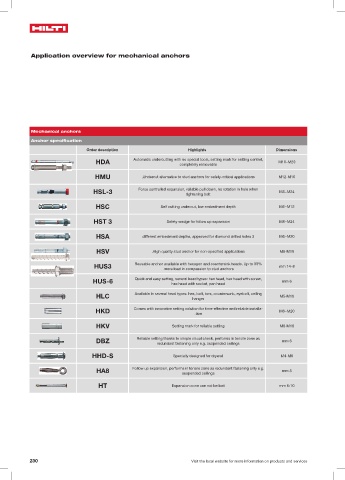

Application overview for mechanical anchors

Mechanical anchors
Anchor specification
Order description Highlights Dimensions
Automatic undercutting with no special tools, setting mark for setting control,
HDA M10–M20
completely removable
HMU .Undercut alternative to stud anchors for safety-critical applications M12-M16

Force controlled expansion, reliable pull down, no rotation in hole when
HSL-3 M8–M24
tightening bolt
HSC Self cutting undercut, low embedment depth M6–M12

HST 3 Safety wedge for follow up expansion M8–M24

HSA different embedment depths, approved for diamond drilled holes 3 M6–M20

HSV .High quality stud anchor for non-specified applications M8-M16

Reusable anchor available with hexagon and countersink heads. Up to 30%
HUS3 .more load in compassion to stud anchors mm 14–8

Quick and easy setting, several head types: hex head, hex head with screw,
HUS-6 mm 6
hex head with socket, pan head
Available in several head types: hex, bolt, torx, countersunk, eyebolt, ceiling
HLC hanger M5-M16

Comes with innovative setting solution for time-effective and reliable installa-
HKD M6–M20
.tion
HKV Setting mark for reliable setting M6-M16

Reliable setting thanks to simple visual check, performs in tensile zone as
DBZ mm 6
redundant fastening only e.g. suspended ceilings
HHD-S Specially designed for drywall M4-M8

Follow up expansion, performs in tensile zone as redundant fastening only e.g.
HA8 mm 8
suspended ceilings
HT Expansion cone can not be lost mm 8-10
