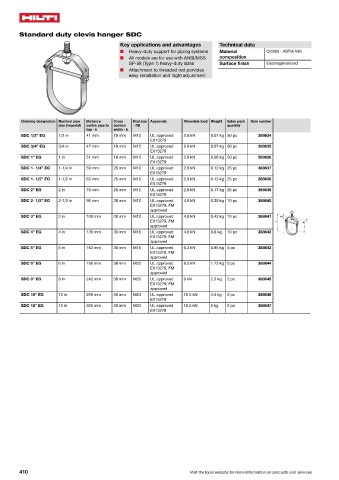

Standard duty clevis hanger SDC
Key applications and advantages Technical data
■ Heavy-duty support for piping systems Material Q235B - ASTM A36
■ All models are for use with ANSI/MSS composition
SP-58 (Type 1) heavy-duty sizes Surface finish Electrogalvanized
■ Attachment to threaded rod porvides
CHANNEL
easy installation and hight adjustment

INSTALLTION

Ordering designation Nominal pipe Distance Cross Rod size Approvals Allowable load Weight Sales pack Item number
size (imperial) centre pipe to section - RS quantity System MQ/MC Hot
top - h width - b
SDC 1/2” EG 1/2 in 41 mm 19 mm M10 UL approved 2.8 kN 0.07 kg 50 pc 388634
EX15279 Dip Galvanized
SDC 3/4” EG 3/4 in 47 mm 19 mm M10 UL approved 2.8 kN 0.07 kg 50 pc 388635
EX15279
SDC 1” EG 1 in 51 mm 19 mm M10 UL approved 2.8 kN 0.08 kg 50 pc 388636
EX15279
SDC 1- 1/4” EG 1-1/4 in 59 mm 25 mm M10 UL approved 2.8 kN 0.12 kg 25 pc 388637
EX15279
SDC 1- 1/2” EG 1-1/2 in 65 mm 25 mm M10 UL approved 2.8 kN 0.13 kg 25 pc 388638
EX15279
SDC 2” EG 2 in 76 mm 25 mm M10 UL approved 2.8 kN 0.17 kg 25 pc 388639
EX15279
SDC 2- 1/2” EG 2-1/2 in 96 mm 30 mm M12 UL approved 4.8 kN 0.39 kg 10 pc 388640
EX15279, FM
approved 56
SDC 3” EG 3 in 109 mm 30 mm M12 UL approved 4.8 kN 0.43 kg 10 pc 388641 05,
EX15279, FM + [ E
approved K
SDC 4” EG 4 in 136 mm 30 mm M16 UL approved 4.8 kN 0.6 kg 10 pc 388642
EX15279, FM
approved
SDC 5” EG 5 in 163 mm 30 mm M16 UL approved 6.3 kN 0.95 kg 5 pc 388643
EX15279, FM
approved
SDC 6” EG 6 in 196 mm 38 mm M20 UL approved 8.5 kN 1.73 kg 5 pc 388644
EX15279, FM
approved
SDC 8” EG 8 in 242 mm 38 mm M20 UL approved 9 kN 2.5 kg 2 pc 388645
EX15279, FM
approved
SDC 10” EG 10 in 299 mm 50 mm M24 UL approved 16.5 kN 4.5 kg 2 pc 388646
EX15279
SDC 12” EG 12 in 305 mm 50 mm M24 UL approved 16.5 kN 5 kg 2 pc 388647
EX15279
