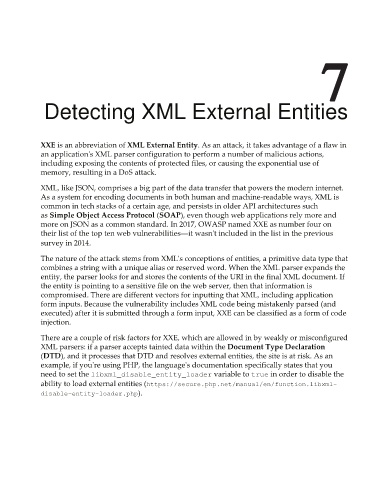

Page 130 - Hands-On Bug Hunting for Penetration Testers

7 7

Detecting XML External Entities

XXE is an abbreviation of XML External Entity. As an attack, it takes advantage of a flaw in
an application's XML parser configuration to perform a number of malicious actions,
including exposing the contents of protected files, or causing the exponential use of
memory, resulting in a DoS attack.

XML, like JSON, comprises a big part of the data transfer that powers the modern internet.
As a system for encoding documents in both human and machine-readable ways, XML is
common in tech stacks of a certain age, and persists in older API architectures such
as Simple Object Access Protocol (SOAP), even though web applications rely more and
more on JSON as a common standard. In 2017, OWASP named XXE as number four on
their list of the top ten web vulnerabilitiesbit wasn't included in the list in the previous
survey in 2014.
The nature of the attack stems from XML's conceptions of entities, a primitive data type that
combines a string with a unique alias or reserved word. When the XML parser expands the
entity, the parser looks for and stores the contents of the URI in the final XML document. If
the entity is pointing to a sensitive file on the web server, then that information is
compromised. There are different vectors for inputting that XML, including application
form inputs. Because the vulnerability includes XML code being mistakenly parsed (and
executed) after it is submitted through a form input, XXE can be classified as a form of code
injection.

There are a couple of risk factors for XXE, which are allowed in by weakly or misconfigured
XML parsers: if a parser accepts tainted data within the Document Type Declaration
(DTD), and it processes that DTD and resolves external entities, the site is at risk. As an
example, if you're using PHP, the language's documentation specifically states that you
need to set the MJCYNM@EJTBCMF@FOUJUZ@MPBEFS variable to USVF in order to disable the
ability to load external entities (IUUQT TFDVSF QIQ OFU NBOVBM FO GVODUJPO MJCYNM
EJTBCMF FOUJUZ MPBEFS QIQ).
