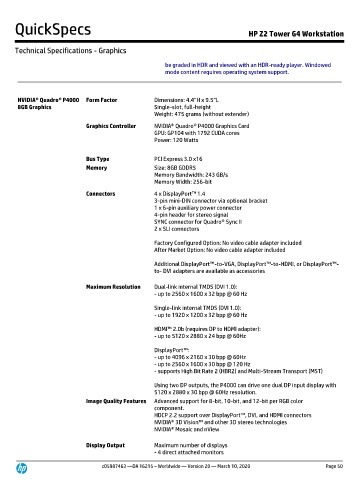

QuickSpecs HP Z2 Tower G4 Workstation

Technical Specifications - Graphics

be graded in HDR and viewed with an HDR-ready player. Windowed
mode content requires operating system support.

NVIDIA® Quadro® P4000 Form Factor Dimensions: 4.4”H x 9.5”L
8GB Graphics Single-slot, full-height
Weight: 475 grams (without extender)
Graphics Controller NVIDIA® Quadro® P4000 Graphics Card
GPU: GP104 with 1792 CUDA cores
Power: 120 Watts

Bus Type PCI Express 3.0 x16
Memory Size: 8GB GDDR5
Memory Bandwidth: 243 GB/s
Memory Width: 256-bit
Connectors 4 x DisplayPort™ 1.4
3-pin mini-DIN connector via optional bracket
1 x 6-pin auxiliary power connector
4-pin header for stereo signal
SYNC connector for Quadro® Sync II
2 x SLI connectors

Factory Configured Option: No video cable adapter included
After Market Option: No video cable adapter included

Additional DisplayPort™-to-VGA, DisplayPort™-to-HDMI, or DisplayPort™-
to- DVI adapters are available as accessories

Maximum Resolution Dual-link internal TMDS (DVI 1.0):
- up to 2560 x 1600 x 32 bpp @ 60 Hz

Single-link internal TMDS (DVI 1.0):
- up to 1920 x 1200 x 32 bpp @ 60 Hz

HDMI™ 2.0b (requires DP to HDMI adapter):
- up to 5120 x 2880 x 24 bpp @ 60Hz

DisplayPort™:
- up to 4096 x 2160 x 30 bpp @ 60Hz
- up to 2560 x 1600 x 30 bpp @ 120 Hz
- supports High Bit Rate 2 (HBR2) and Multi-Stream Transport (MST)

Using two DP outputs, the P4000 can drive one dual DP input display with
5120 x 2880 x 30 bpp @ 60Hz resolution.
Image Quality Features Advanced support for 8-bit, 10-bit, and 12-bit per RGB color
component.
HDCP 2.2 support over DisplayPort™, DVI, and HDMI connectors
NVIDIA® 3D Vision™ and other 3D stereo technologies
NVIDIA® Mosaic and nView

Display Output Maximum number of displays
- 4 direct attached monitors

c05987463 —DA 16215 – Worldwide — Version 20 — March 10, 2020 Page 50
