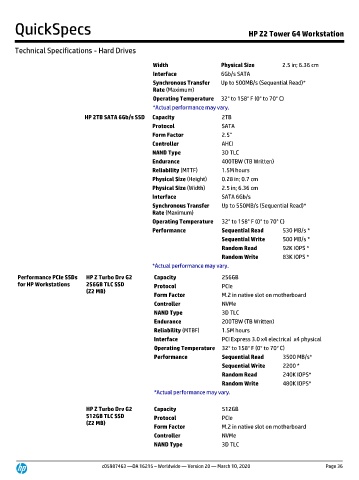

QuickSpecs HP Z2 Tower G4 Workstation

Technical Specifications - Hard Drives

Width Physical Size 2.5 in; 6.36 cm
Interface 6Gb/s SATA
Synchronous Transfer Up to 500MB/s (Sequential Read)*
Rate (Maximum)
Operating Temperature 32° to 158° F (0° to 70° C)
*Actual performance may vary.
HP 2TB SATA 6Gb/s SSD Capacity 2TB
Protocol SATA
Form Factor 2.5"
Controller AHCI
NAND Type 3D TLC
Endurance 400TBW (TB Written)
Reliability (MTTF) 1.5M hours
Physical Size (Height) 0.28 in; 0.7 cm
Physical Size (Width) 2.5 in; 6.36 cm
Interface SATA 6Gb/s
Synchronous Transfer Up to 550MB/s (Sequential Read)*
Rate (Maximum)
Operating Temperature 32° to 158° F (0° to 70° C)
Performance Sequential Read 530 MB/s *
Sequential Write 500 MB/s *
Random Read 92K IOPS *
Random Write 83K IOPS *
*Actual performance may vary.
Performance PCIe SSDs HP Z Turbo Drv G2 Capacity 256GB
for HP Workstations 256GB TLC SSD Protocol PCIe
(Z2 MB)
Form Factor M.2 in native slot on motherboard
Controller NVMe
NAND Type 3D TLC
Endurance 200TBW (TB Written)
Reliability (MTBF) 1.5M hours
Interface PCI Express 3.0 x4 electrical x4 physical
Operating Temperature 32° to 158° F (0° to 70° C)
Performance Sequential Read 3500 MB/s*
Sequential Write 2200 *
Random Read 240K IOPS*
Random Write 480K IOPS*
*Actual performance may vary.

HP Z Turbo Drv G2 Capacity 512GB
512GB TLC SSD Protocol PCIe
(Z2 MB)
Form Factor M.2 in native slot on motherboard
Controller NVMe
NAND Type 3D TLC

c05987463 —DA 16215 – Worldwide — Version 20 — March 10, 2020 Page 36
