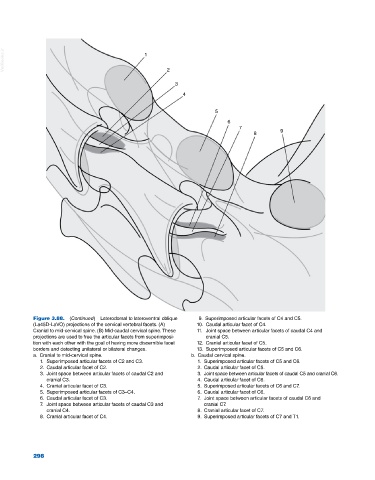

Figure 3.88. (Continued) Laterodorsal to lateroventral oblique 9. Superimposed articular facets of C4 and C5.
(La45D‐LaVO) projections of the cervical vertebral facets. (A) 10. Caudal articular facet of C4.
Cranial to mid‐cervical spine. (B) Mid‐caudal cervical spine. These 11. Joint space between articular facets of caudal C4 and
projections are used to free the articular facets from superimposi­ cranial C5.
tion with each other with the goal of having more discernible facet 12. Cranial articular facet of C5.
borders and detecting unilateral or bilateral changes. 13. Superimposed articular facets of C5 and C6.
a. Cranial to mid‐cervical spine. b. Caudal cervical spine.
1. Superimposed articular facets of C2 and C3. 1. Superimposed articular facets of C5 and C6.
2. Caudal articular facet of C2. 2. Caudal articular facet of C5.
3. Joint space between articular facets of caudal C2 and 3. Joint space between articular facets of caudal C5 and cranial C6.
cranial C3. 4. Caudal articular facet of C6.
4. Cranial articular facet of C3. 5. Superimposed articular facets of C6 and C7.
5. Superimposed articular facets of C3–C4. 6. Caudal articular facet of C6.
6. Caudal articular facet of C3. 7. Joint space between articular facets of caudal C6 and
7. Joint space between articular facets of caudal C3 and cranial C7.
cranial C4. 8. Cranial articular facet of C7.
8. Cranial articular facet of C4. 9. Superimposed articular facets of C7 and T1.
