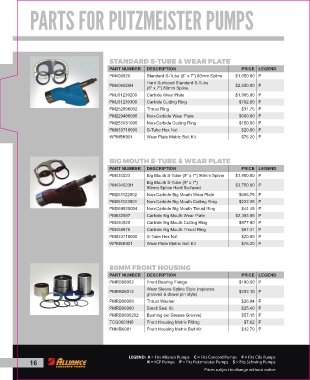

Page 18 - 2018 Alliance Parts Catalog Canada FULL

PARTS FOR PUTZMEISTER PUMPS

STANDARD S-TUBE & WEAR PLATE
PART NUMBER DESCRIPTION PRICE LEGEND
PM406926 Standard S-Tube (8" x 7") 80mm Spline $1,650.00 P
Hard Surfaced Standard S-Tube
PM406926H $2,650.00 P
(8" x 7") 80mm Spline
PMJ01239200 Carbide Wear Plate $1,905.00 P
PMJ01239300 Carbide Cutting Ring $762.00 P
PM252898002 Thrust Ring $31.75 P
PM229488005 Non-Carbide Wear Plate $600.00 P
PM251031006 Non-Carbide Cutting Ring $150.00 P
PM033718000 S-Tube Hex Nut $20.00 P
WPMBK001 Wear Plate Metric Bolt Kit $76.20 P

BIG MOUTH S-TUBE & WEAR PLATE
PART NUMBER DESCRIPTION PRICE LEGEND
PM434023 Big Mouth S-Tube (9" x 7") 90mm Spline $1,800.00 P
Big Mouth S-Tube (9" x 7")
PM434023H $3,750.00 P
90mm Spline Hard Surfaced
PM261122002 Non-Carbide Big Mouth Wear Plate $666.75 P
PM261123001 Non-Carbide Big Mouth Cutting Ring $222.25 P
PM269520004 Non-Carbide Big Mouth Thrust Ring $44.45 P
PM532597 Carbide Big Mouth Wear Plate $2,393.95 P
PM494520 Carbide Big Mouth Cutting Ring $977.90 P
PM458878 Carbide Big Mouth Thrust Ring $67.31 P
PM033718000 S-Tube Hex Nut $20.00 P
WPMBK001 Wear Plate Metric Bolt Kit $76.20 P

80MM FRONT HOUSING
PART NUMBER DESCRIPTION PRICE LEGEND
PMRB06002 Front Bearing Flange $190.50 P
Wear Sleeve-Spline Style (replaces
PMRB06012 $292.10 P
grooved & dowel pin style)
PMRB06008 Thrust Washer $26.04 P
PMRB06060 Small Seal Kit $25.40 P
PMRB0600202 Bushing (w/ Grease Groove) $57.15 P
TCG0601N0 Front Housing Metric Fitting $7.62 P
FHMBK001 Front Housing Metric Bolt Kit $12.70 P

LEGEND: A = Fits Alliance Pumps C = Fits Concord Pumps F = Fits Cifa Pumps
16 K = KCP Pumps P = Fits Putzmeister Pumps S = Fits Schwing Pumps

Prices subject to change without notice
