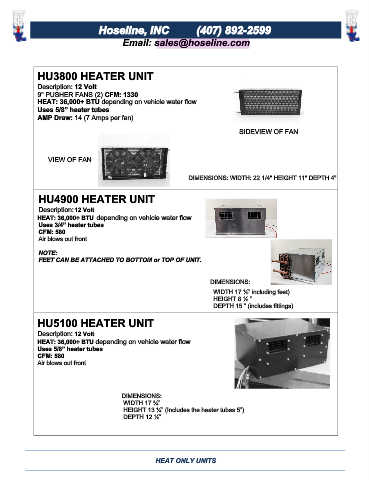

Page 22 - Complete Catalog

Hoseline, INC (407) 892-2599
Email: sales@hoseline.com

HU3800 HEATER UNIT

Description: 12 Volt
9" PUSHER FANS (2) CFM: 1330
HEAT: 36,000+ BTU depending on vehicle water flow
Uses 5/8” heater tubes
AMP Draw: 14 (7 Amps per fan)

SIDEVIEW OF FAN

VIEW OF FAN

DIMENSIONS: WIDTH: 22 1/4" HEIGHT 11" DEPTH 4"

HU4900 HEATER UNIT
Description: 12 Volt
HEAT: 36,000+ BTU depending on vehicle water flow
Uses 3/4” heater tubes
CFM: 580
Air blows out front

NOTE:
FEET CAN BE ATTACHED TO BOTTOM or TOP OF UNIT.

DIMENSIONS:
WIDTH 17 ½” including feet)
HEIGHT 8 ½ ”
DEPTH 15 ” (includes fittings)

HU5100 HEATER UNIT

Description: 12 Volt
HEAT: 36,000+ BTU depending on vehicle water flow
Uses 5/8” heater tubes
CFM: 580
Air blows out front

DIMENSIONS:
WIDTH 17 ¾”
HEIGHT 13 ¼” (Includes the heater tubes 5”)
DEPTH 12 ½”

HEAT ONLY UNITS
