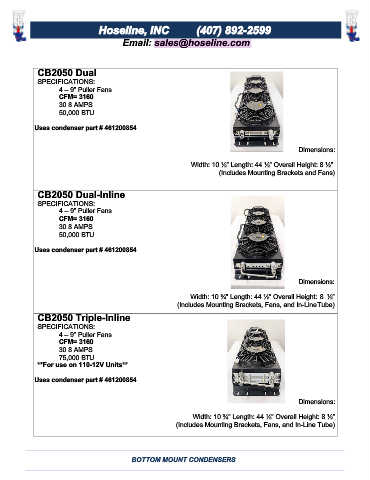

Page 45 - Complete Catalog
P. 45
Hoseline, INC (407) 892-2599
Email: sales@hoseline.com
CB2050 Dual
SPECIFICATIONS:
4 – 9” Puller Fans
CFM= 3160
30.8 AMPS
50,000 BTU
Uses condenser part # 461200854
Dimensions:
Width: 10 ½” Length: 44 ½” Overall Height: 8 ½”
(Includes Mounting Brackets and Fans)
CB2050 Dual-Inline
SPECIFICATIONS:
4 – 9” Puller Fans
CFM= 3160
30.8 AMPS
50,000 BTU
Uses condenser part # 461200854
Dimensions:
Width: 10 ¾” Length: 44 ½” Overall Height: ½”
(Includes Mounting Brackets, Fans, and In-Line Tube)
CB2050 Triple-Inline
SPECIFICATIONS:
4 – 9” Puller Fans
CFM= 3160
30.8 AMPS
75,000 BTU
**For use on 110-12V Units**
Uses condenser part # 461200854
Dimensions:
Width: 10 ¾” Length: 44 ½” Overall Height: 8 ½”
(Includes Mounting Brackets, Fans, and In-Line Tube)
BOTTOM MOUNT CONDENSERS
