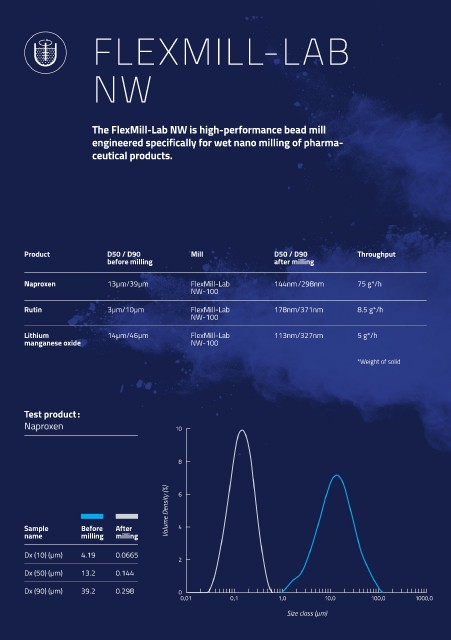

FLEXMILL-LAB
NW
The FlexMill-Lab NW is high-performance bead mill
engineered specifically for wet nano milling of pharma-
ceutical products.
Product D50 / D90 Mill D50 / D90 Throughput
before milling after milling
Naproxen 13µm/39µm FlexMill-Lab 144nm /298 nm 75 g*/h
NW-100
Rutin 3 µm/10 µm FlexMill-Lab 178 nm/371nm 8.5 g*/h
NW-100
Lithium 14 µm/46 µm FlexMill-Lab 113nm/327 nm 5 g*/h
manganese oxide NW-100
*Weight of solid
Test product :
Naproxen 10
8
Volume Density (%) 6
Sample Before After 4
name milling milling
Dx (10) (µm) 4.19 0.0665 2
Dx (50) (µm) 13.2 0.144
Dx (90) (µm) 39.2 0.298 0
0,01 0,1 1,0 10,0 100,0 1000,0
Size class (µm)
