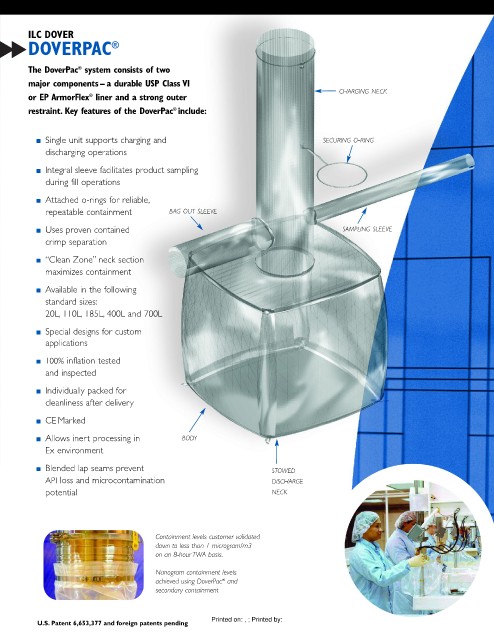

ILC DOVER
DOVERPAC ®

The DoverPac system consists of two
®
major components – a durable USP Class VI
CHARGING NECK
or EP ArmorFlex liner and a strong outer
®
®
restraint. Key features of the DoverPac include:

n Single unit supports charging and SECURING O-RING
discharging operations

n Integral sleeve facilitates product sampling
during fill operations
n Attached o-rings for reliable,
repeatable containment BAG OUT SLEEVE

n Uses proven contained SAMPLING SLEEVE
crimp separation

n “Clean Zone” neck section
maximizes containment

n Available in the following
standard sizes:
20L, 110L, 185L, 400L and 700L

n Special designs for custom
applications

n 100% inflation tested
and inspected

n Individually packed for
cleanliness after delivery
n CE Marked

n Allows inert processing in BODY
Ex environment

n Blended lap seams prevent STOWED
API loss and microcontamination DISCHARGE
potential NECK
®
One of the key elements to our DoverPac line of products is the ArmorFlex 104 material.This rugged
®
film was custom formulated by ILCto deliver superior elongation performance (nearly 500%) and high
Containment levels customer validated
strength.This feature coupled with a unique blend of safe and effective anti-static additives allows all of down to less than 1 microgram/m3
on an 8-hour TWA basis.
®
the DoverPac products to deliver reliable, high-level containment. ArmorFlex is also offered without
®
Nanogram containment levels
®
anti-static additives. achieved using DoverPac and
secondary containment

Printed on: , ; Printed by:
U.S. Patent 6,653,377 and foreign patents pending
