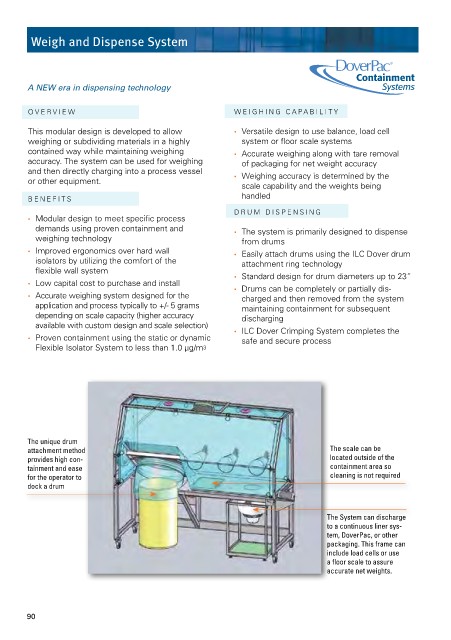

Weigh and Dispense System

Containment
A NEW era in dispensing technology Systems
OVER VIEW WEIGHING CAPABILITY

This modular design is developed to allow • Versatile design to use balance, load cell
weighing or subdividing materials in a highly system or floor scale systems
contained way while maintaining weighing • Accurate weighing along with tare removal
accuracy. The system can be used for weighing of packaging for net weight accuracy
and then directly charging into a process vessel • Weighing accuracy is determined by the
or other equipment.
scale capability and the weights being
BENEFITS handled
DRUM DISPENSING
• Modular design to meet specific process
demands using proven containment and • The system is primarily designed to dispense
weighing technology from drums
• Improved ergonomics over hard wall • Easily attach drums using the ILC Dover drum
isolators by utilizing the comfort of the attachment ring technology
flexible wall system • Standard design for drum diameters up to 23”
• Low capital cost to purchase and install • Drums can be completely or partially dis-
• Accurate weighing system designed for the charged and then removed from the system
application and process typically to +/- 5 grams maintaining containment for subsequent
depending on scale capacity (higher accuracy discharging
available with custom design and scale selection) • ILC Dover Crimping System completes the
• Proven containment using the static or dynamic safe and secure process
Flexible Isolator System to less than 1.0 μg/m 3

The unique drum
attachment method The scale can be
provides high con- located outside of the
tainment and ease containment area so
for the operator to cleaning is not required
dock a drum

The System can discharge
to a continuous liner sys-
tem, DoverPac, or other
packaging. This frame can
include load cells or use
a floor scale to assure
accurate net weights.

90
