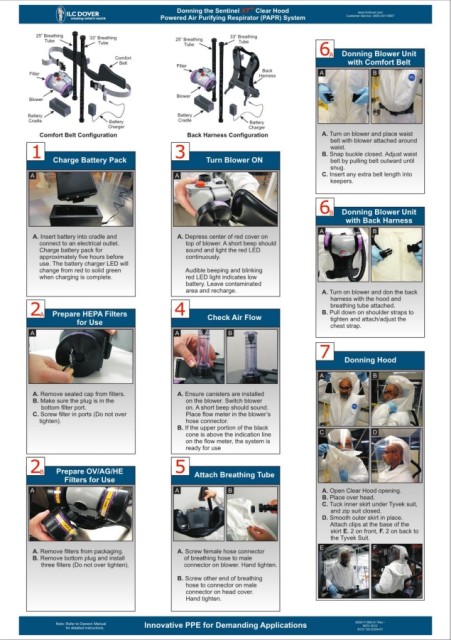

Donning the Sentinel XT TM Clear Hood www.ilcdover.com
Powered Air Purifying Respirator (PAPR) System Customer Service: (800) 631-9567
25” Breathing 33” Breathing 33” Breathing
Tube 25” Breathing Tube
Tube Tube
6
Comfort A Donning Blower Unit
Belt with Comfort Belt
Filter
Back
Filter A B
Harness
Blower
Blower
Battery Battery
Cradle Battery Cradle Battery
Charger Charger
Comfort Belt Configuration Back Harness Configuration A. Turn on blower and place waist
belt with blower attached around
1 3 waist.
B. Snap buckle closed. Adjust waist
Charge Battery Pack Turn Blower ON belt by pulling belt outward until
snug.
A A C. Insert any extra belt length into
keepers.
6 Donning Blower Unit
B
with Back Harness
A B
A. Insert battery into cradle and A. Depress center of red cover on
connect to an electrical outlet. top of blower. A short beep should
Charge battery pack for sound and light the red LED
approximately five hours before continuously.
use. The battery charger LED will
change from red to solid green Audible beeping and blinking
when charging is complete. red LED light indicates low
battery. Leave contaminated
area and recharge. A. Turn on blower and don the back
harness with the hood and
2 Prepare HEPA Filters 4 breathing tube attached.
B. Pull down on shoulder straps to
A
for Use Check Air Flow tighten and attach/adjust the
chest strap.
A A B
7
Donning Hood
A B
A. Remove sealed cap from filters. A. Ensure canisters are installed
B. Make sure the plug is in the on the blower. Switch blower
bottom filter port. on. A short beep should sound.
C. Screw filter in ports (Do not over Place flow meter in the blower’s
tighten). hose connector.
B. If the upper portion of the black
cone is above the indication line C D
on the flow meter, the system is
ready for use
2 Prepare OV/AG/HE 5
B
Filters for Use Attach Breathing Tube
A A B A. Open Clear Hood opening.
B. Place over head.
C. Tuck inner skirt under Tyvek suit,
and zip suit closed.
D. Smooth outer skirt in place.
Attach clips at the base of the
skirt E. 2 on front, F. 2 on back to
the Tyvek Suit.
E F
A. Remove filters from packaging. A. Screw female hose connector
B. Remove bottom plug and install of breathing hose to male
three filters (Do not over tighten). connector on blower. Hand tighten.
B. Screw other end of breathing
hose to connector on male
connector on head cover.
Hand tighten.
Note: Refer to Owners’ Manual Innovative PPE for Demanding Applications 6000-71565-01 Rev -
NOV 2012
for detailed instructions.
ECO 122-2254-01
