SECTION 2 VALVES

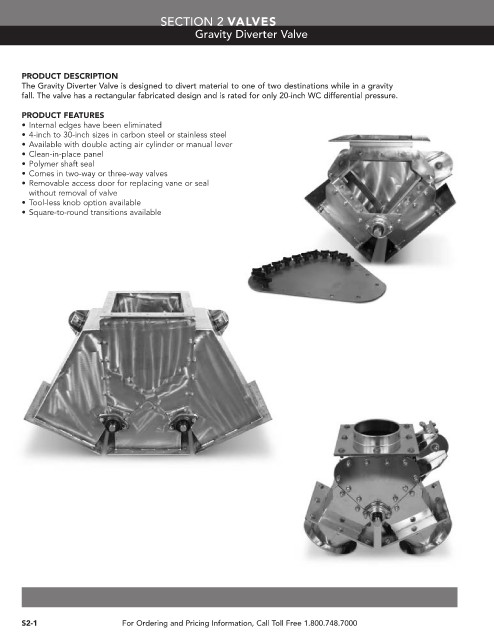

Gravity Diverter Valve
PRODUCT DESCRIPTION
The Gravity Diverter Valve is designed to divert material to one of two destinations while in a gravity
fall. The valve has a rectangular fabricated design and is rated for only 20-inch WC differential pressure.
PRODUCT FEATURES
• Internal edges have been eliminated
• 4-inch to 30-inch sizes in carbon steel or stainless steel
• Available with double acting air cylinder or manual lever
• Clean-in-place panel
• Polymer shaft seal
• Comes in two-way or three-way valves
• Removable access door for replacing vane or seal
without removal of valve
• Tool-less knob option available
• Square-to-round transitions available
S2-1 For Ordering and Pricing Information, Call Toll Free 1.800.748.7000
