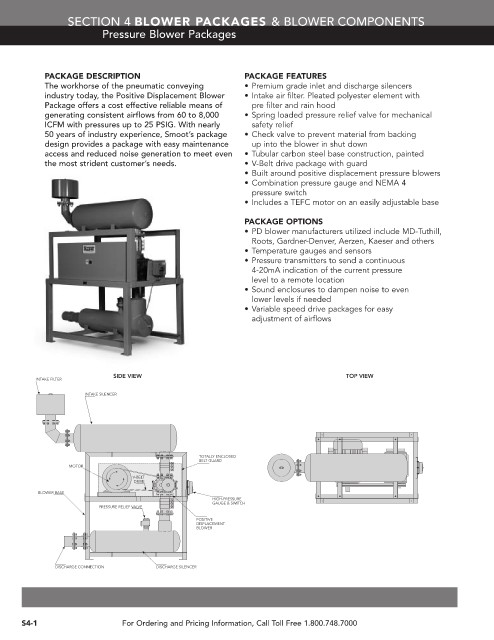

SECTION 4 BLOWER PACKAGES & BLOWER COMPONENTS
Pressure Blower Packages

PACKAGE DESCRIPTION PACKAGE FEATURES
The workhorse of the pneumatic conveying • Premium grade inlet and discharge silencers
industry today, the Positive Displacement Blower • Intake air filter. Pleated polyester element with
Package offers a cost effective reliable means of pre filter and rain hood
generating consistent airflows from 60 to 8,000 • Spring loaded pressure relief valve for mechanical
ICFM with pressures up to 25 PSIG. With nearly safety relief
50 years of industry experience, Smoot’s package • Check valve to prevent material from backing
design provides a package with easy maintenance up into the blower in shut down
access and reduced noise generation to meet even • Tubular carbon steel base construction, painted
the most strident customer’s needs. • V-Belt drive package with guard
• Built around positive displacement pressure blowers
• Combination pressure gauge and NEMA 4
pressure switch
• Includes a TEFC motor on an easily adjustable base

PACKAGE OPTIONS
• PD blower manufacturers utilized include MD-Tuthill,
Roots, Gardner-Denver, Aerzen, Kaeser and others
• Temperature gauges and sensors
• Pressure transmitters to send a continuous
4-20mA indication of the current pressure
level to a remote location
• Sound enclosures to dampen noise to even
lower levels if needed
• Variable speed drive packages for easy
adjustment of airflows

SIDE VIEW TOP VIEW
INTAKE FILTER
INTAKE SILENCER

TOTALLY ENCLOSED
BELT GUARD
MOTOR
V-BELT
DRIVE
BLOWER BASE
HIGH-PRESSURE
GAUGE & SWITCH
PRESSURE RELIEF VALVE
POSITIVE
DISPLACEMENT
BLOWER

DISCHARGE CONNECTION DISCHARGE SILENCER

S4-1 For Ordering and Pricing Information, Call Toll Free 1.800.748.7000
