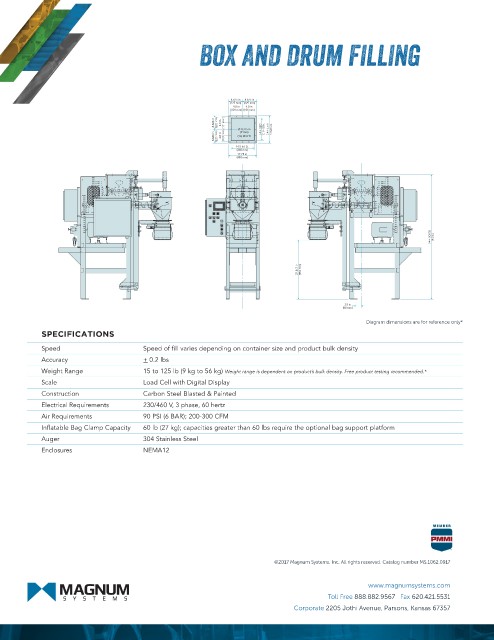

BOX AND DRUM FILLING

8.875 in 8.875 in
(225 mm) (225 mm)
4.0 in 4.0 in
(101 mm) (101 mm)
8.688 in (220 mm) 4.0 in (101 mm) Ø 0.375 in (355 mm) 14.0 in I.D. (441 mm) 17.375 in
(9 mm)
8.688 in (220 mm) 4.0 in (101 mm) (16) REQ'D
14.5 in I.D.
(368 mm)
17.75 in
(450 mm)

37.547 in (953 mm) (2,006 mm) 79.0 in

3.5 in
(88 mm)
Diagram dimensions are for reference only*
SPECIFICATIONS
Speed Speed of fill varies depending on container size and product bulk density
Accuracy + 0.2 lbs
Weight Range 15 to 125 lb (9 kg to 56 kg) Weight range is dependent on product’s bulk density. Free product testing recommended.*
Scale Load Cell with Digital Display
Construction Carbon Steel Blasted & Painted
Electrical Requirements 230/460 V, 3 phase, 60 hertz
Air Requirements 90 PSI (6 BAR); 200-300 CFM
Inflatable Bag Clamp Capacity 60 lb (27 kg); capacities greater than 60 lbs require the optional bag support platform
Auger 304 Stainless Steel
Enclosures NEMA12
