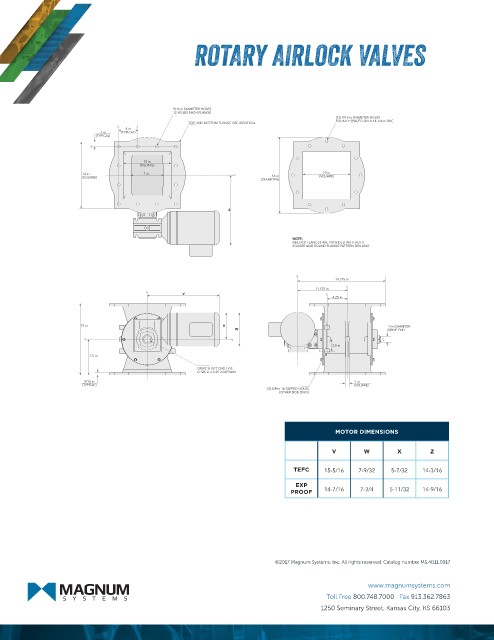

ROTARY AIRLOCK VALVES

9/16 in DIAMETER HOLES
12 HOLES EACH FLANGE
(12) 9/16 in DIAMETER HOLES
TOP AND BOTTOM FLANGE ARE IDENTICAL EQUALLY SPACED ON A 14-1/4-in DBC
4 in
1 in (TYPICAL)
(TYPICAL)

10 in
(SQUARE)
14 in 7 in. 16 in 10 in
(SQUARE) (SQUARE)
(DIAMETER)

Z

NOTE:
AIRLOCK FLANGES ARE PROVIDED WITH BOTH
SQUARE AND ROUND FLANGE PATTERN DRILLING.

19.375 in
11.125 in
V
4.25 in

15 in X 1-in DIAMETER
W DRIVE END
2.5 in
7.5 in
DRIVE SHAFT END HAS
0.125-in x 0.25-in KEYWAY
9/16 in 1-in
(TYPICAL) (SQUARE)
(3) 3/8-in 16-TAPPED HOLES
(OTHER SIDE ONLY)

MOTOR DIMENSIONS

V W X Z
TEFC 15-5/16 7-9/32 5-7/32 14-3/16
EXP
PROOF 14-7/16 7-3/4 5-11/32 14-9/16

©2017 Magnum Systems, Inc. All rights reserved. Catalog number MS.4011.0917
